Rugged & Durable Truss for Live Events, Exhibitions & Retail
ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.

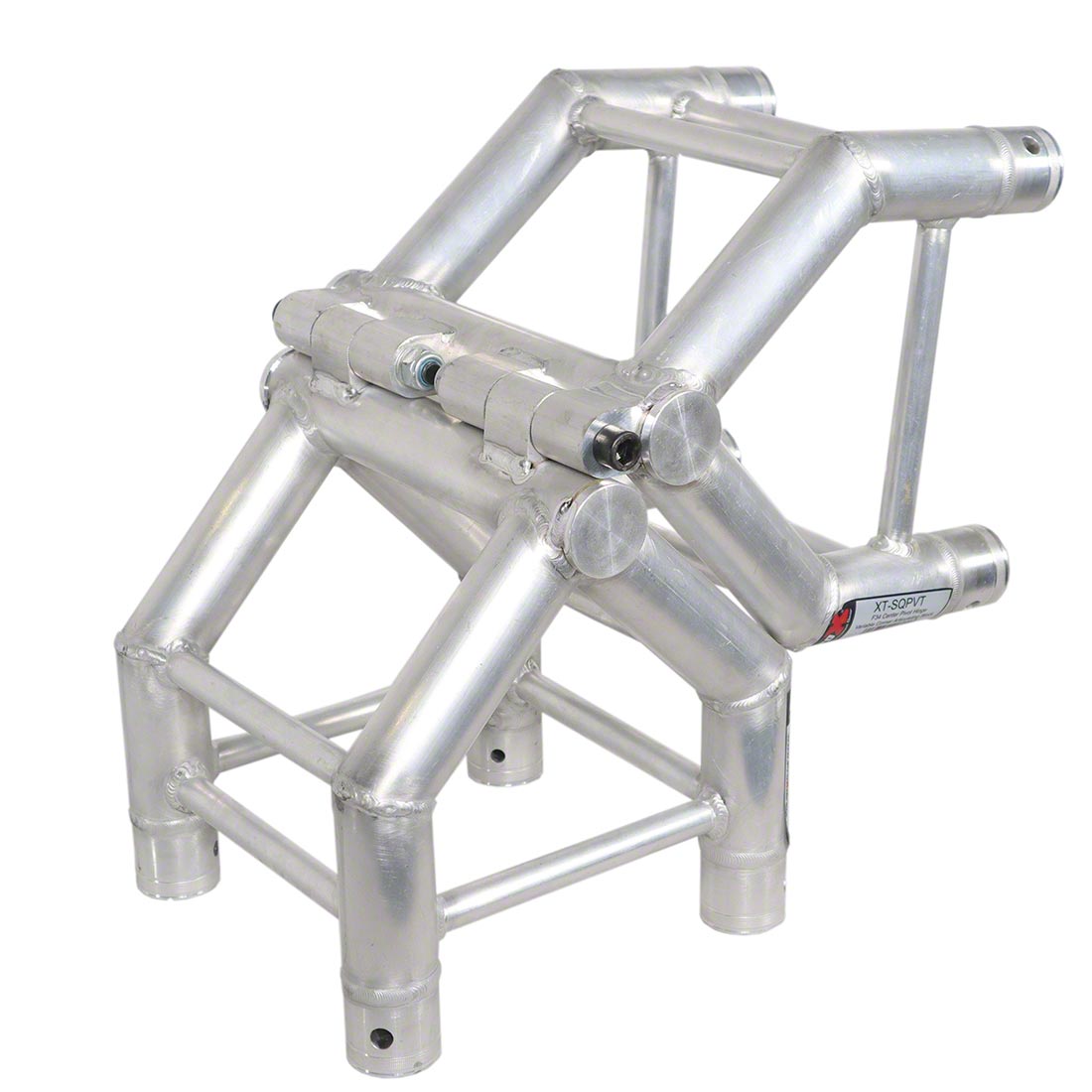

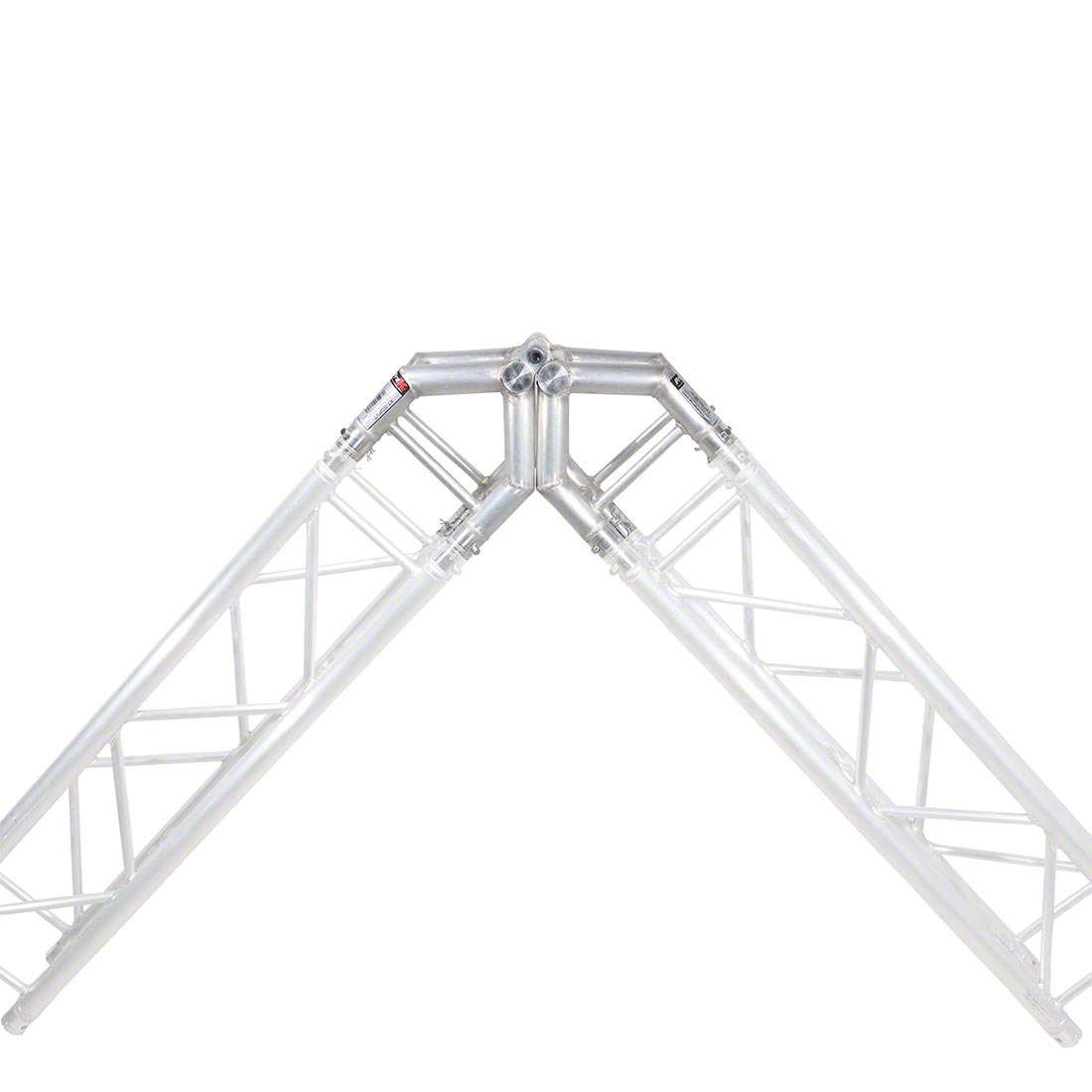

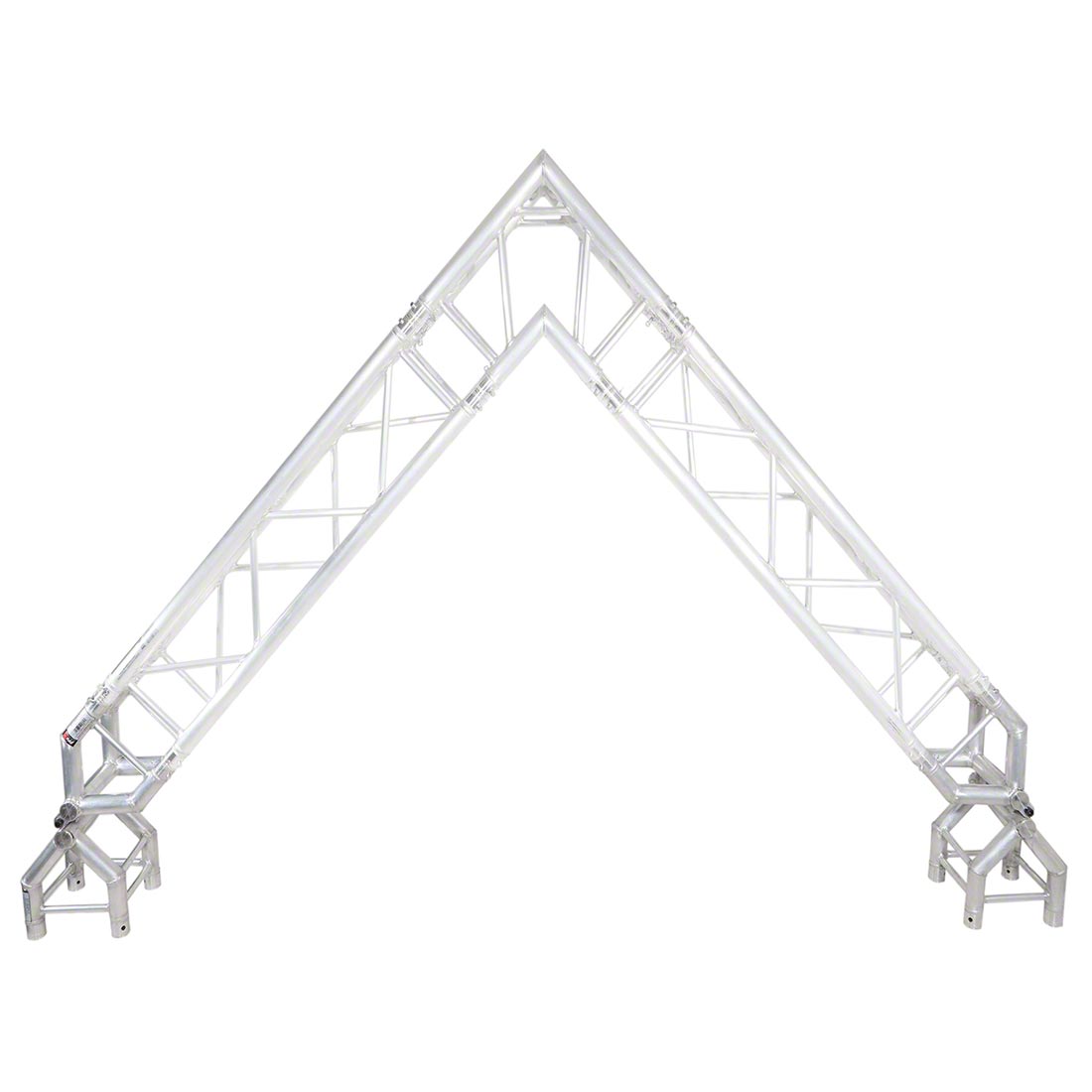

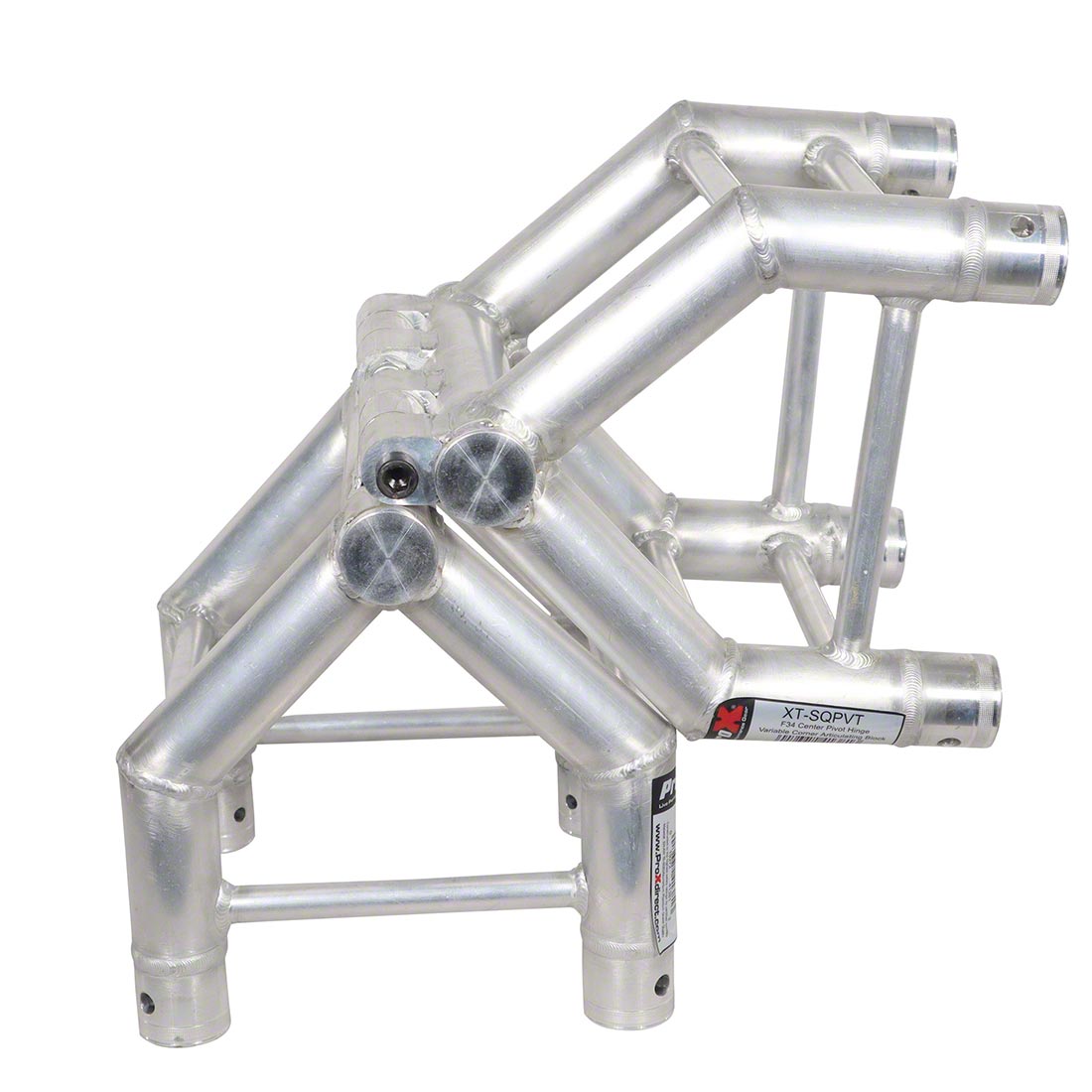

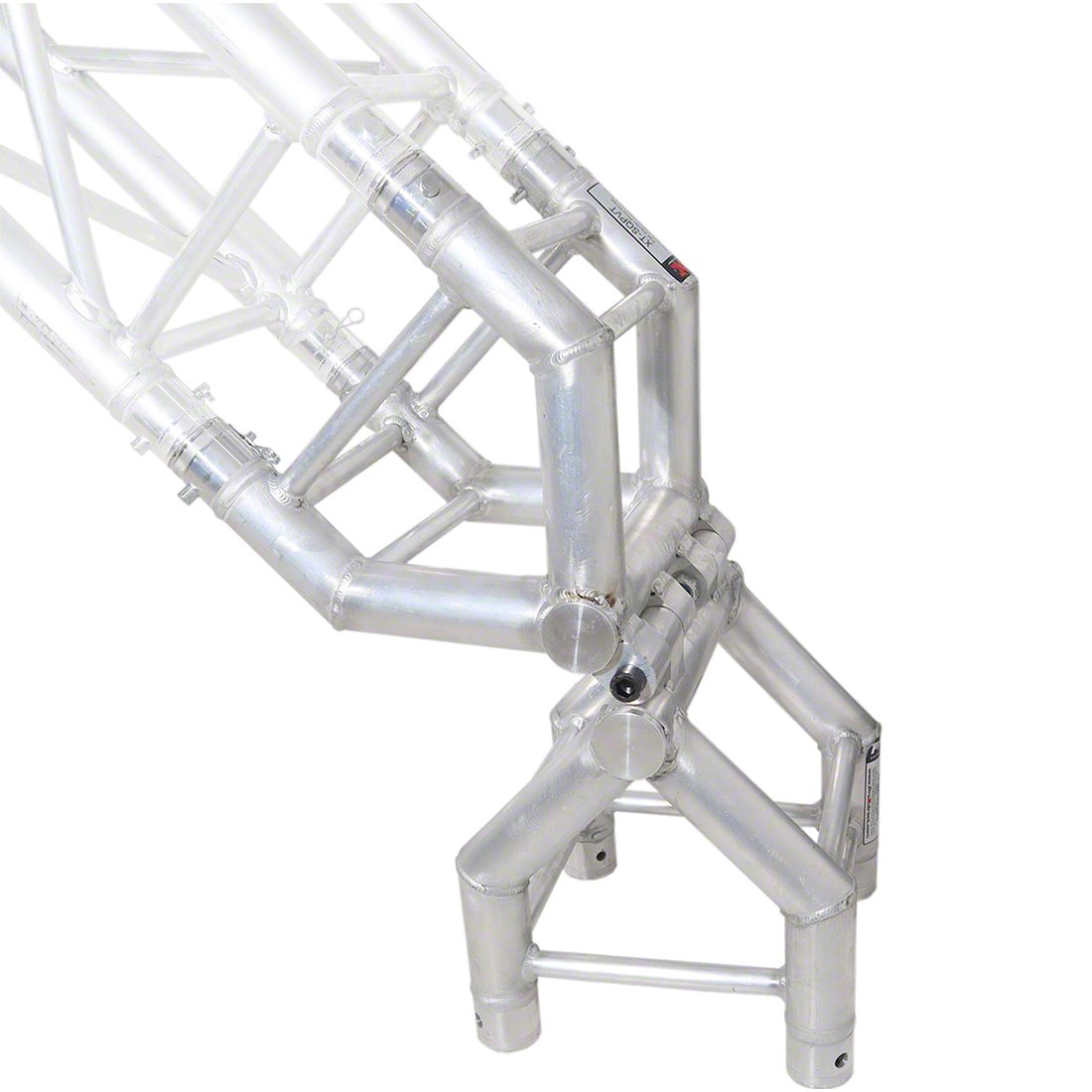

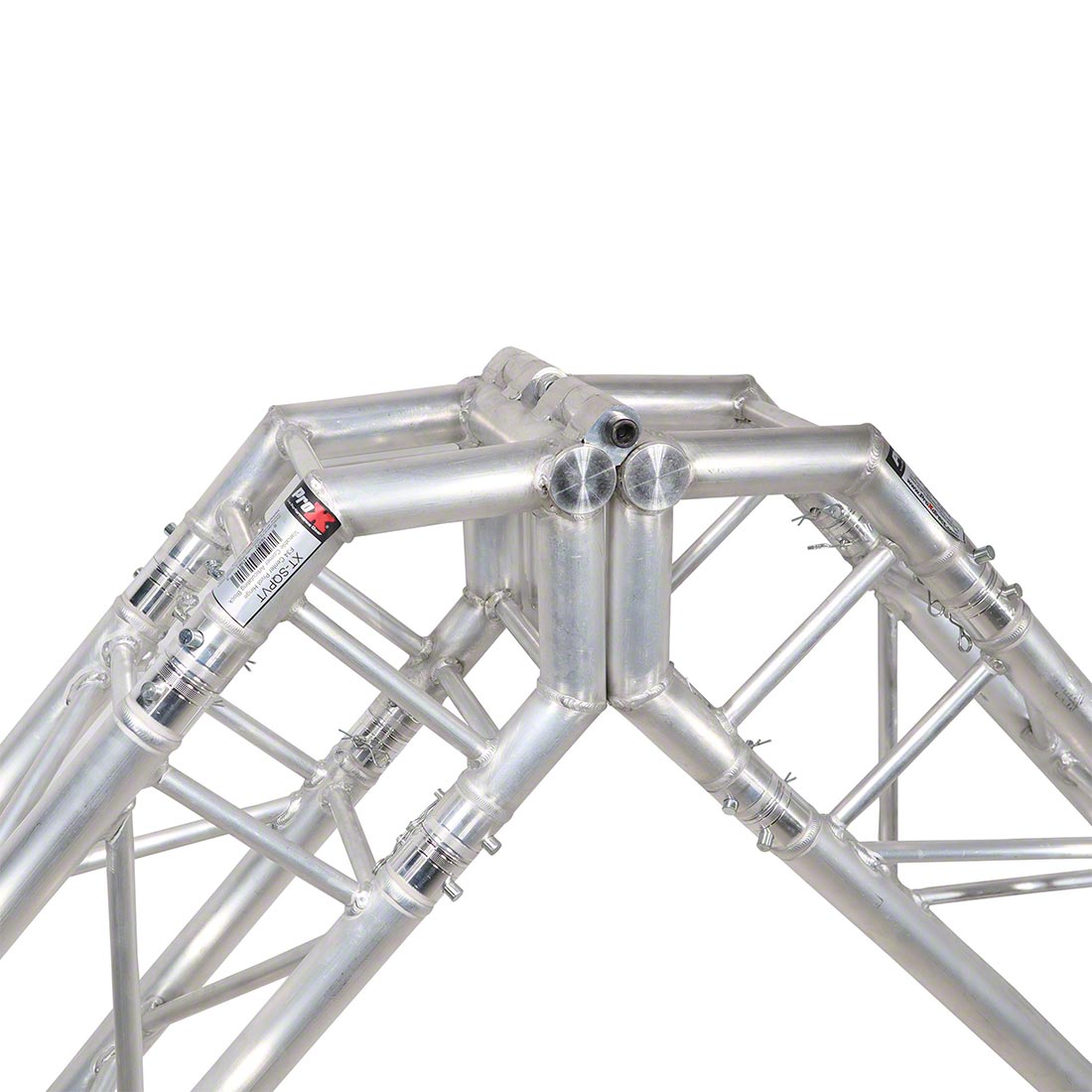

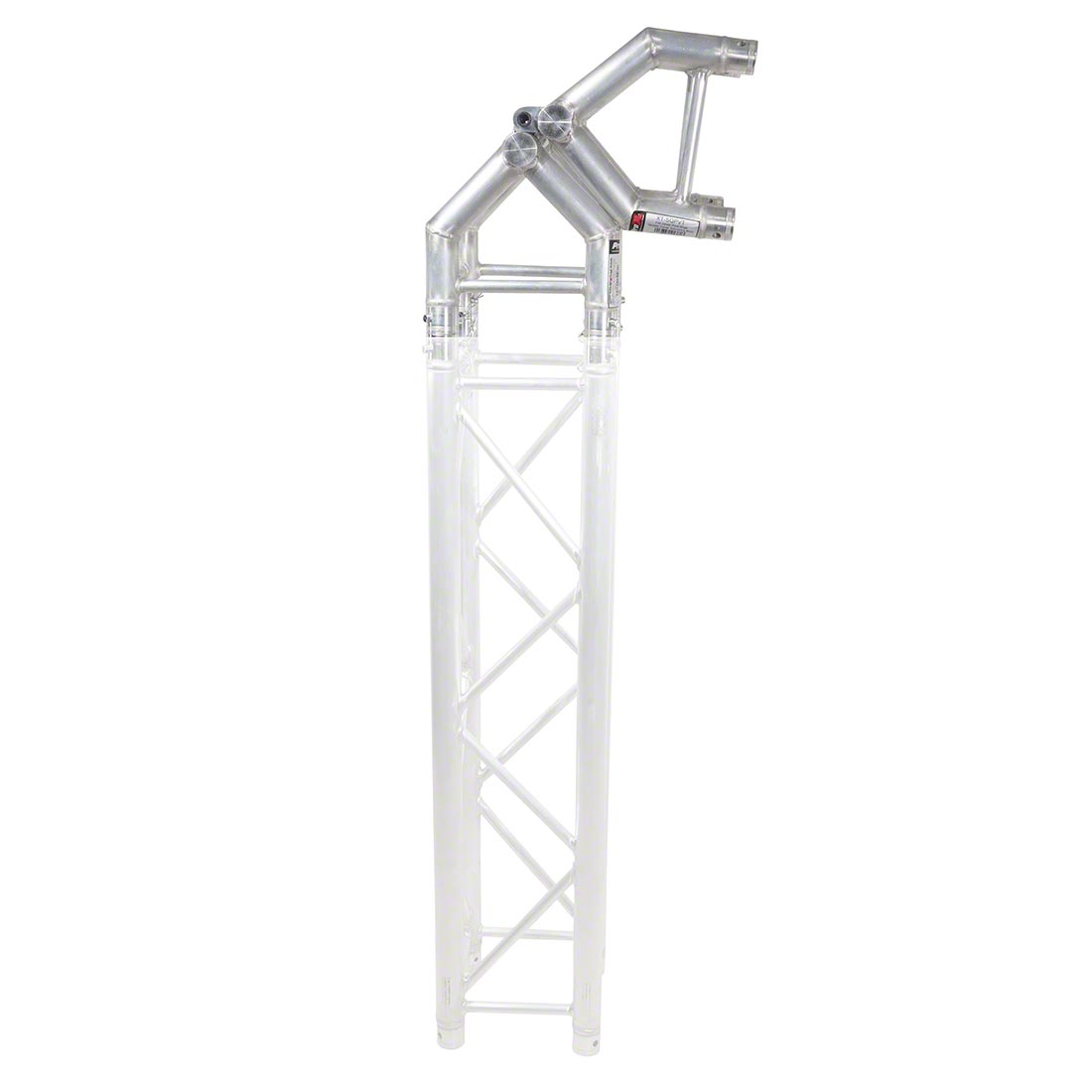

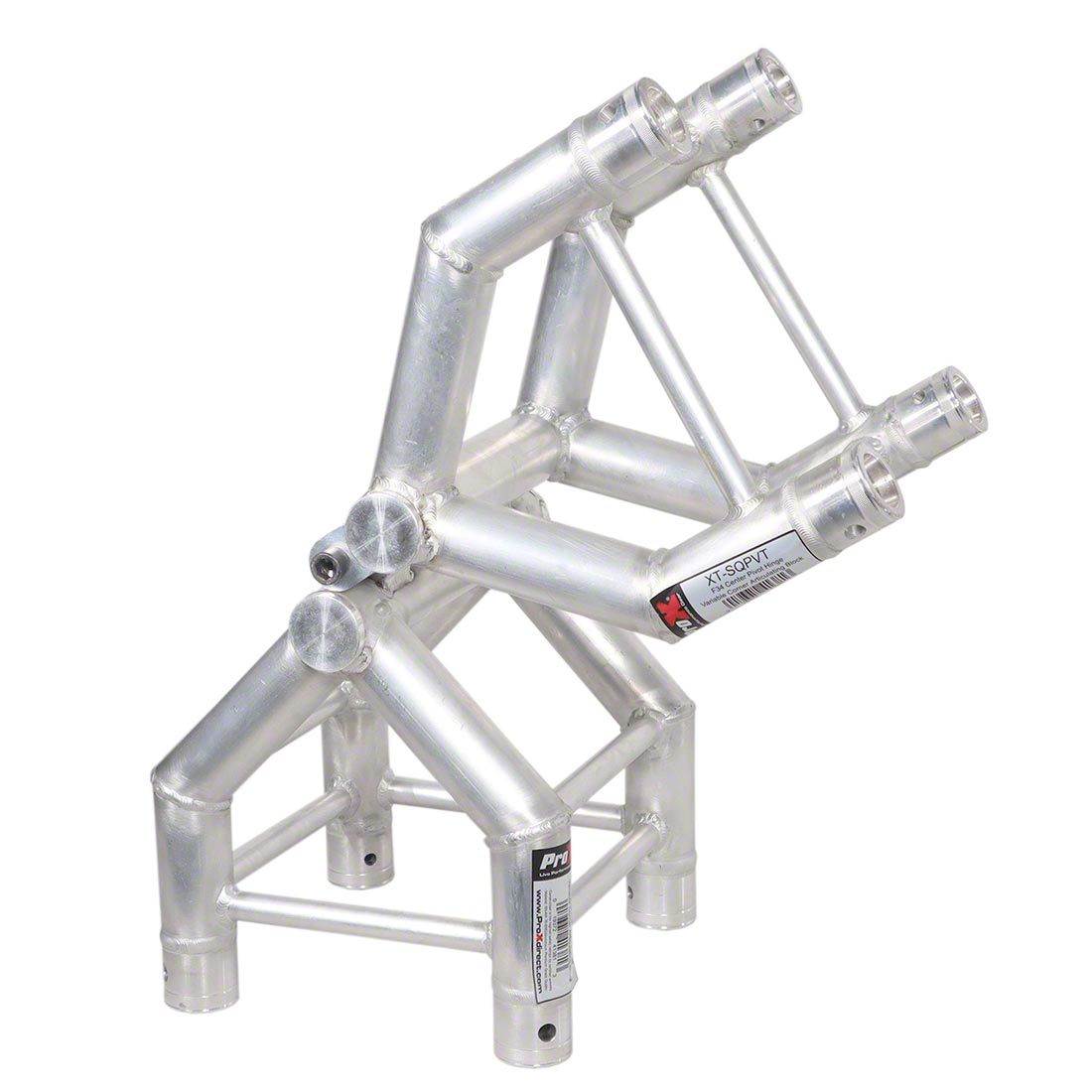

The ProX F34 Square Truss Center Pivot Hinge Articulating Block adjusts from 0° to 180° and fits ProX F34 conical trussing. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique truss construction projects and builds. It is manufactured from high-grade and lightweight aluminum, which is easy for transportation and setup. This product can provide a universal solution for truss angles.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
Rugged & Durable Truss for Live Events, Exhibitions & Retail
ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.
The ProX F34 Square Truss Center Pivot Hinge Articulating Block adjusts from 0° to 180° and fits ProX F34 conical trussing. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique truss construction projects and builds. It is manufactured from high-grade and lightweight aluminum, which is easy for transportation and setup. This product can provide a universal solution for truss angles.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
- Perfect for live outdoor or indoor productions, exhibitions, retail displays & nightclubs
- Ideal truss system for rental, touring and exhibition companies
- Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
- Includes connecting hardware
- Manufactured to exacting specifications in ProX's own factory
- TÜV-certified aluminum welding
- 1 - ProX F34 Square Box Truss Center Pivot Hinge Corner Articulating Block
- 4 - Conical Connector
- 4 - Shear Pin
- 4 - Safety Clip
- Dimensions:
- Length: 290mm (11.42 inches)
- Width: 290mm (11.42 inches)
- Depth: 290mm (11.42 inches)
- Main Tubes: 50mm (2") diameter, 2mm thickness
- Braces: 20mm (3/4") diameter, 2mm thickness
- Weight: 17 lbs
- Material: Aluminium EN AW-6082 T6
- Safety Certifications: TÜV certified
- 1-Year Manufacturer Limited Warranty
- Load Bearing Capacity: XT-SQ Truss Loading Chart
