Rugged & Durable Truss for Live Events, Exhibitions & Retail

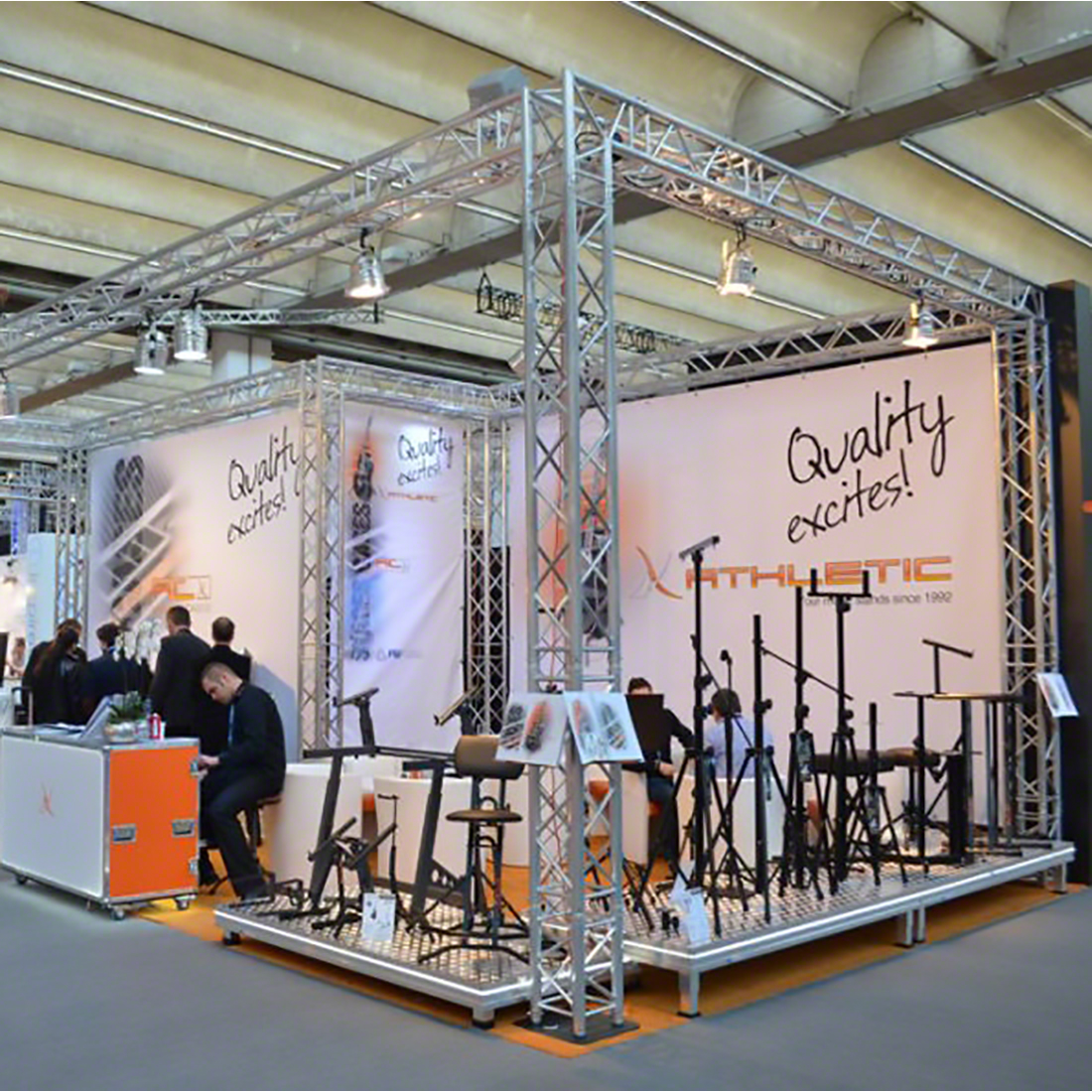

ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.

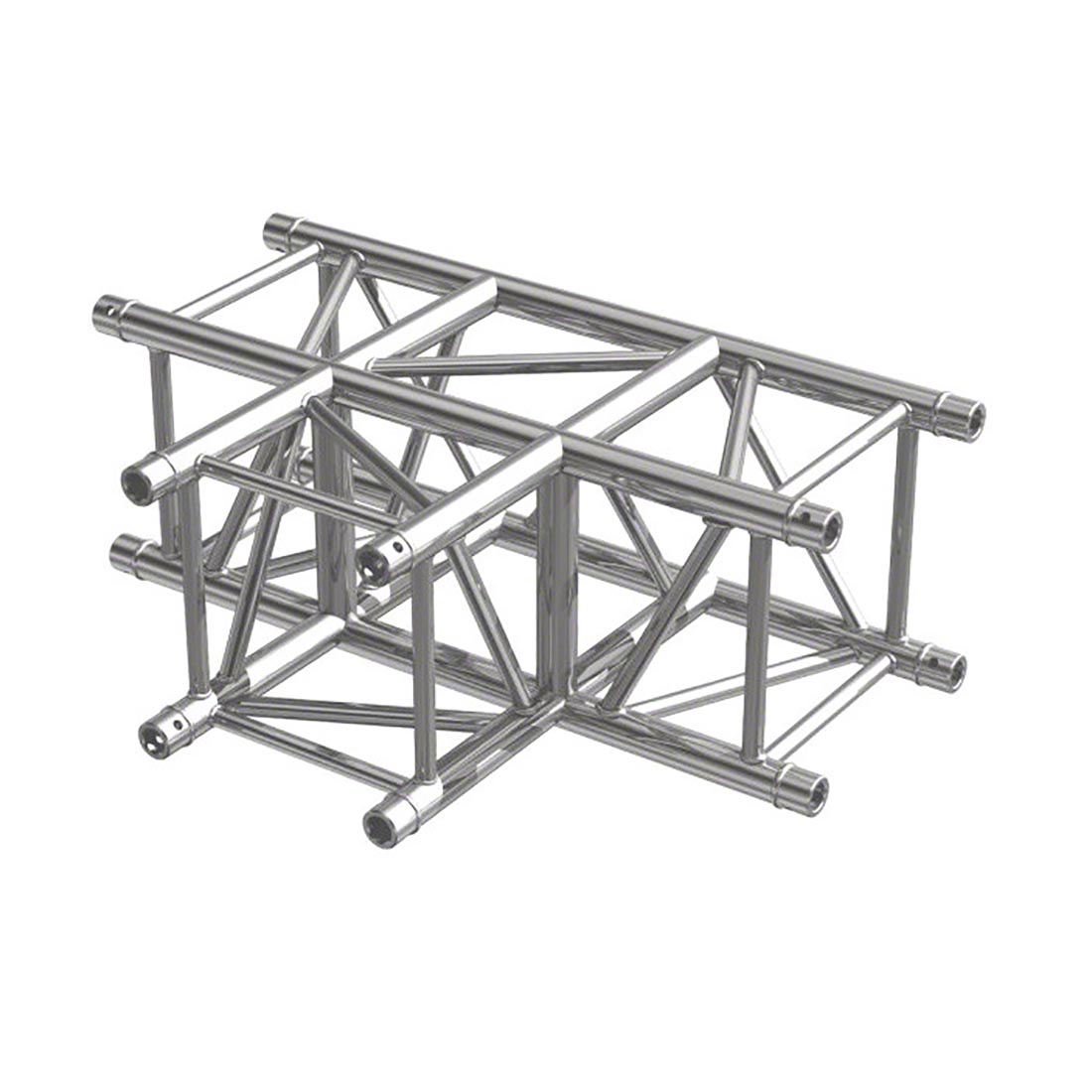

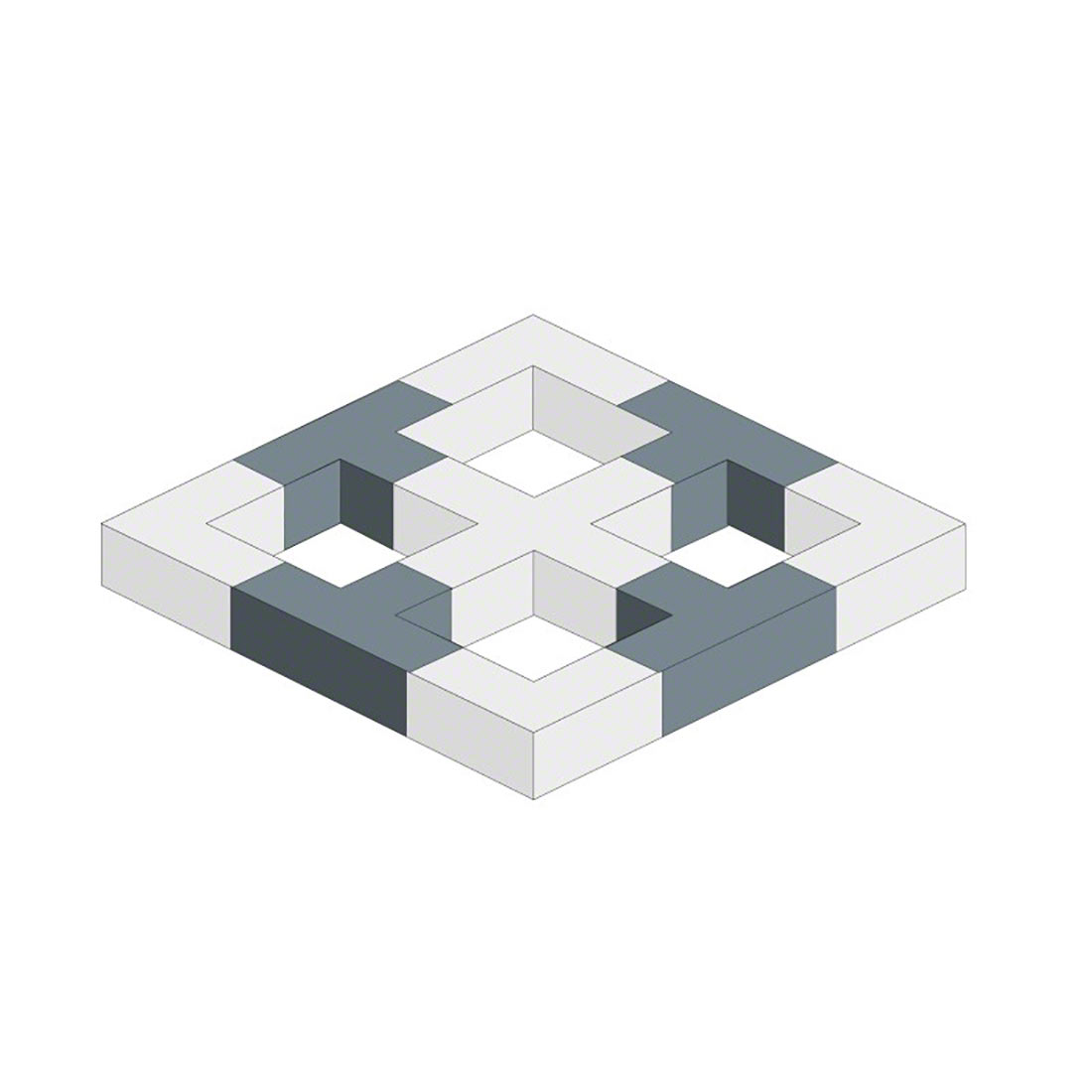

This ProX F34 Square Box Truss 3-Way 90˚ T Junction is a .5m (1.64') truss junction segment that helps you easily make squares or rectangles and works with the ProX XT Series F34 box truss. It connects 3 individual pieces of 290mm square horizontal trussing at a 90-degree angle into a T-shape. Constructed of high-grade aluminium, ProX F34 Square Box Truss consists of a 50x2mm main tubes and 20x2mm braces.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
Rugged & Durable Truss for Live Events, Exhibitions & Retail
ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.
This ProX F34 Square Box Truss 3-Way 90˚ T Junction is a .5m (1.64') truss junction segment that helps you easily make squares or rectangles and works with the ProX XT Series F34 box truss. It connects 3 individual pieces of 290mm square horizontal trussing at a 90-degree angle into a T-shape. Constructed of high-grade aluminium, ProX F34 Square Box Truss consists of a 50x2mm main tubes and 20x2mm braces.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
- Perfect for live outdoor or indoor productions, exhibitions, retail displays & nightclubs
- Ideal truss system for rental, touring and exhibition companies
- Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
- Includes connecting hardware
- Manufactured to exacting specifications in ProX's own factory
- TÜV-certified aluminum welding

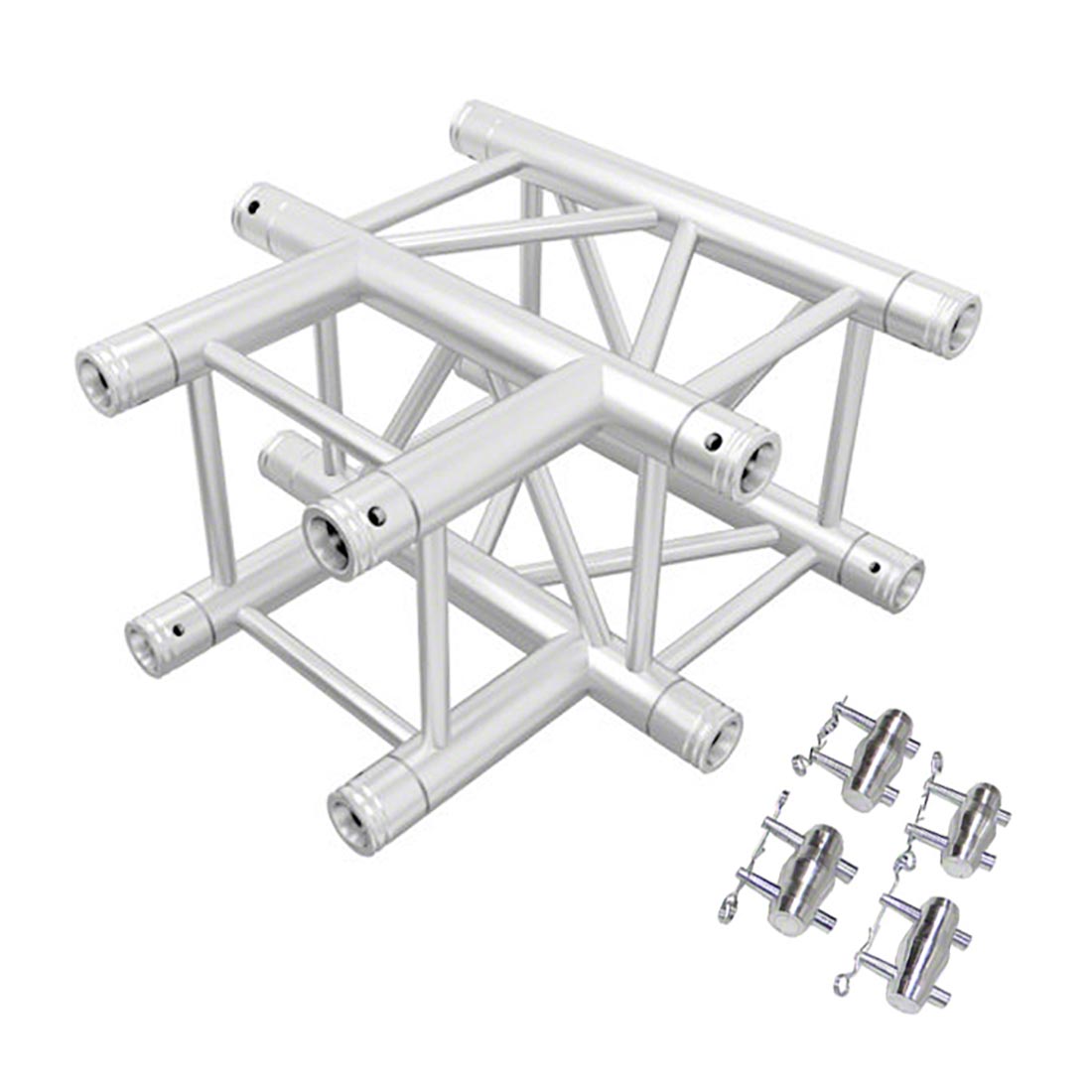

- 1 - ProX F34 Square Box Truss 3-Way 90-Degree T Junction
- 4 - Conical Connector
- 8 - Shear Pin
- 8 - Safety Clip

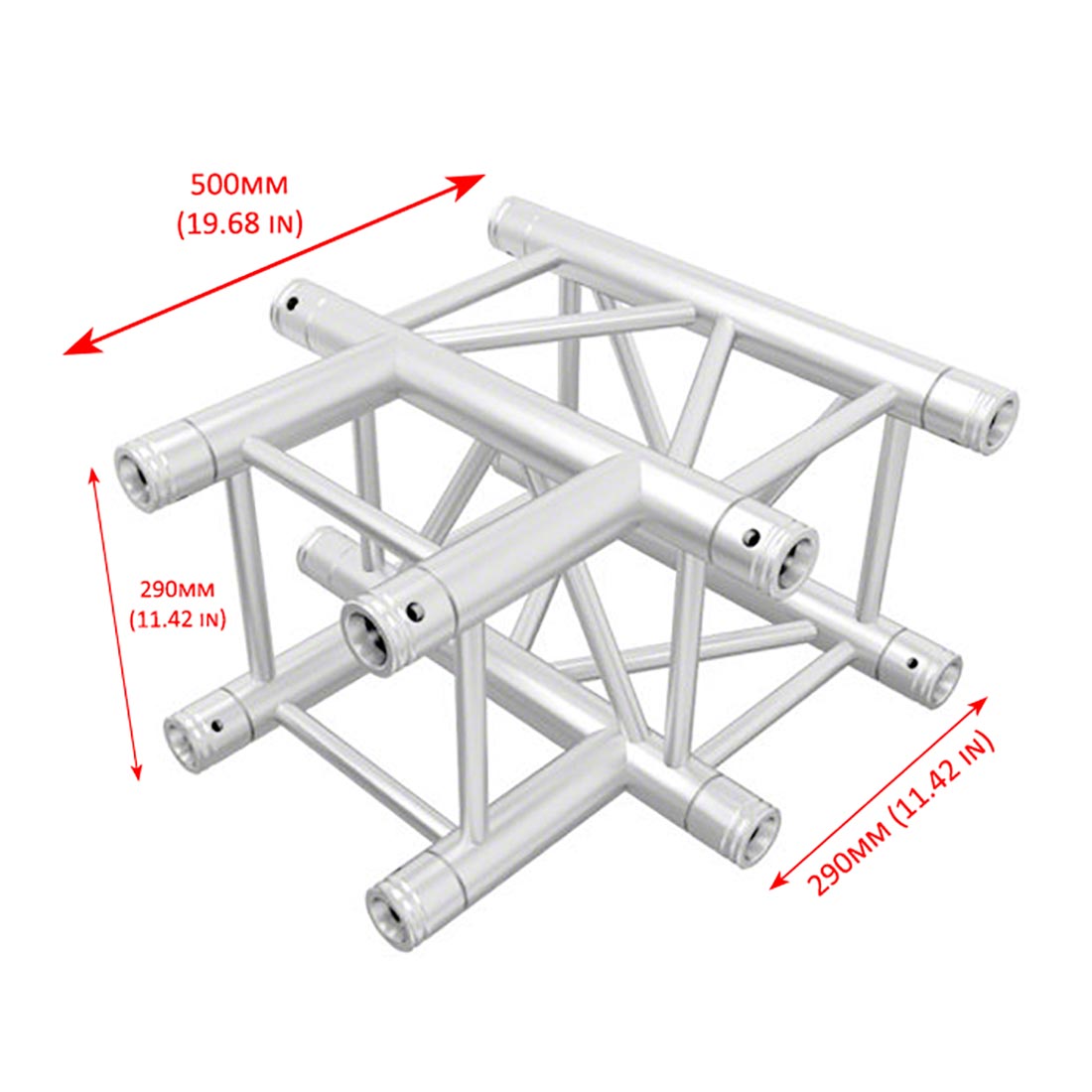

- Dimensions:
- Length: 500mm (19.7 inches)
- Width: 500mm (19.7 inches)
- Depth: 500mm (19.7 inches)
- Main Tubes: 50mm (2") diameter, 2mm thickness
- Braces: 20mm (3/4") diameter, 2mm thickness
- Weight: 18 lbs
- Material: Aluminium EN AW-6082 T6
- Safety Certifications: TÜV certified
- 1-Year Manufacturer Limited Warranty
- Load Bearing Capacity: XT-SQ Truss Loading Chart
