Non-Structural Light-Duty Truss for Smaller Lighting, Displays & Signage
ProX K-Truss is a non-structural economy trussing system for light-duty use for trade show booths, DJ booths, DJ totems, architectural non-loadbearing designs, and much more. It is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology or a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides an economical alternative for reduced load capacity designs while still maintaining a standard truss appearance.

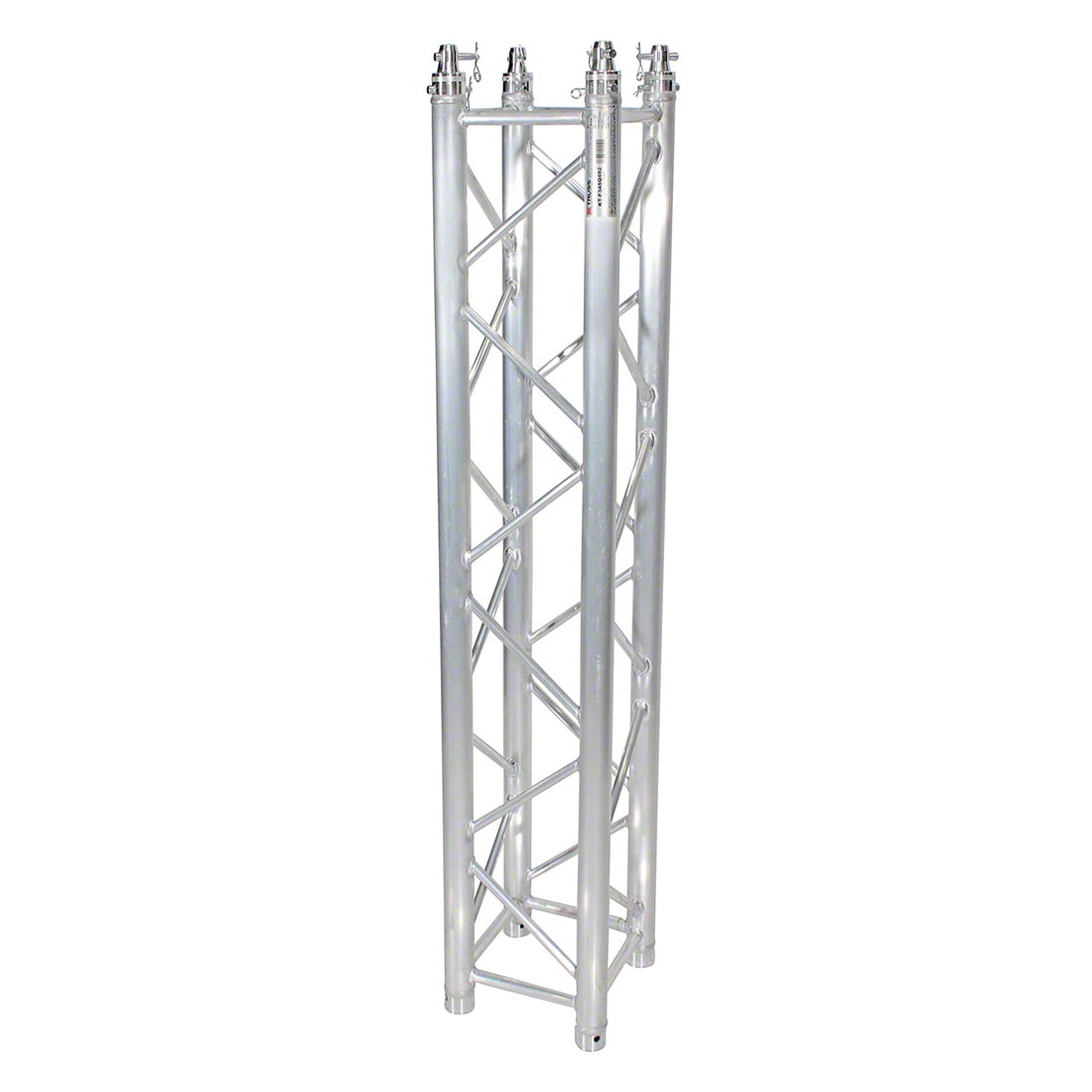

This ProX K-Truss F34 1.5m Economy Square Truss Segment is a 1500mm (59-inch) long, 290mm (11.4-inch) square straight truss piece that can be connected to other K-Truss pieces to build a custom trussing configuration. Constructed of high-grade aluminium, ProX K-Truss F34 Economy Truss consists of a 50x1.5mm main tubes and 16x1.5mm braces. K-Truss load capacity is 75% of standard 2mm F34 square truss load capacity.
Measurements:
(cross-section)
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: ProX K-Truss Loading Chart
Note: ProX Live Performance Gear® (XStatic Pro, Inc.) and StageDrop LLC are not responsible for improper use or overloading by end-users. Consult an engineer for specific applications. This product has a reduced load chart from ProX Live Performance Gear® and is not intended for replacement or substitute for any standard load-bearing truss segments.
Non-Structural Light-Duty Truss for Smaller Lighting, Displays & Signage
ProX K-Truss is a non-structural economy trussing system for light-duty use for trade show booths, DJ booths, DJ totems, architectural non-loadbearing designs, and much more. It is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology or a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides an economical alternative for reduced load capacity designs while still maintaining a standard truss appearance.
This ProX K-Truss F34 1.5m Economy Square Truss Segment is a 1500mm (59-inch) long, 290mm (11.4-inch) square straight truss piece that can be connected to other K-Truss pieces to build a custom trussing configuration. Constructed of high-grade aluminium, ProX K-Truss F34 Economy Truss consists of a 50x1.5mm main tubes and 16x1.5mm braces. K-Truss load capacity is 75% of standard 2mm F34 square truss load capacity.
Measurements:
(cross-section)
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: ProX K-Truss Loading Chart
Note: ProX Live Performance Gear® (XStatic Pro, Inc.) and StageDrop LLC are not responsible for improper use or overloading by end-users. Consult an engineer for specific applications. This product has a reduced load chart from ProX Live Performance Gear® and is not intended for replacement or substitute for any standard load-bearing truss segments.
- Non-structural economy truss primarily designed for display structures
- Similar in appearance to most major brands of F34 square truss (not compatible)
- Made from display-grade quality EN-AW T6-6061 aluminium
- Load capacity is 75% of standard 2mm F34 truss
- Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments
- Constructed to the highest quality by certified welders
- Tolerance-free standard conical connector
- 1 - ProX K-Truss F34 Economy Square Truss Straight Segment, 1.5m
- 4 - Conical Connector
- 8 - Pin
- 8 - Safety Clip

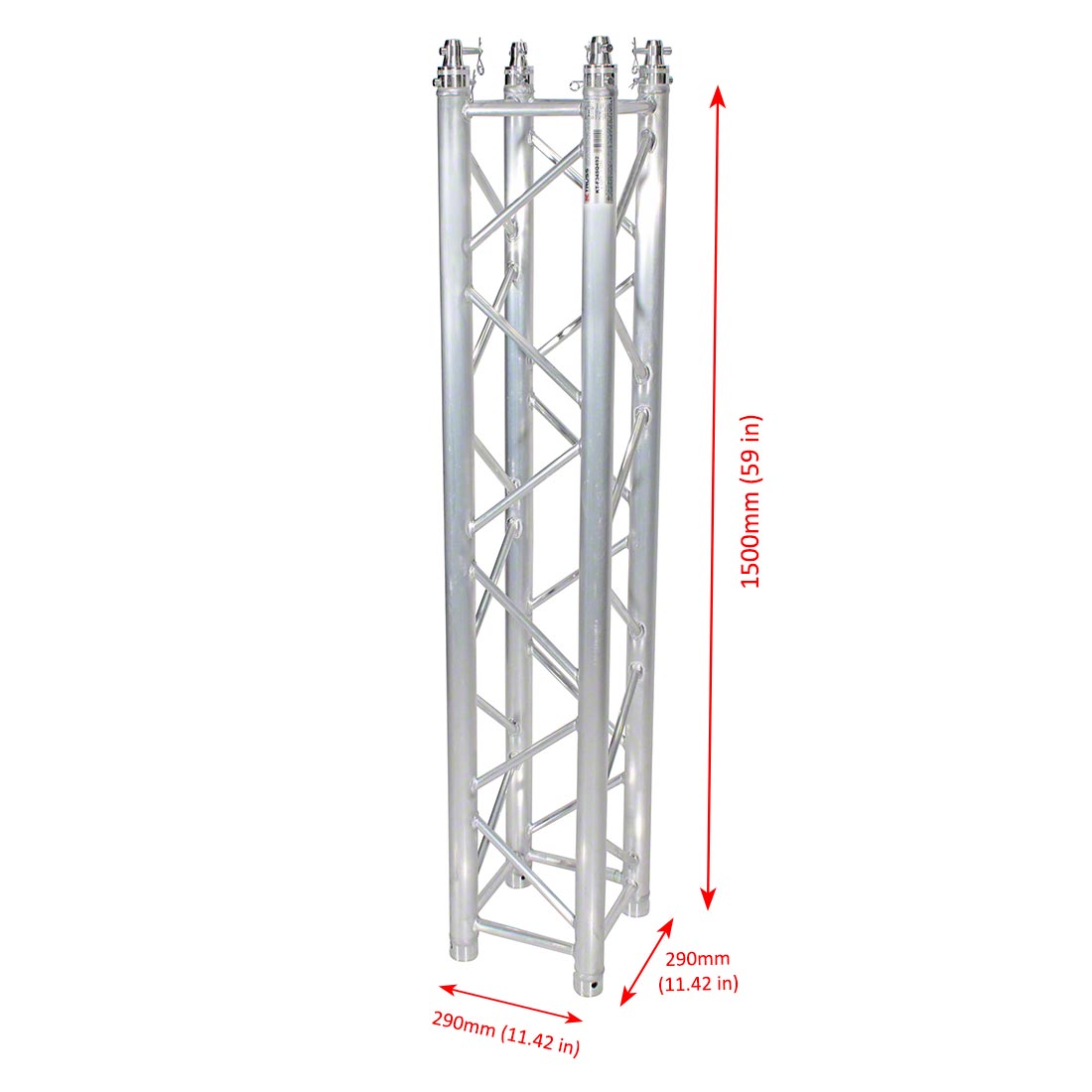

- Dimensions:
- Length: 1500mm (59 inches)
- Width: 290mm (11.41 inches)
- Depth: 290mm (11.41 inches)
- Main Tubes: 50mm (2") diameter, 1.5mm thickness
- Braces: 16mm (3/4") diameter, 1.5mm thickness
- Weight: 15 lbs
- Material: Aluminium EN-AW T6-6061
- 1-Year Manufacturer Limited Warranty (excludes use as rental equipment)
- Load Bearing Capacity: ProX K-Truss Loading Chart
