Compact & Durable Truss for Trade Shows, Event Technology & Lighting
The ProX XT-F32-492 Truss Straight Segment is a 1500mm (59-inch) long, 290mm (11.4-inch) wide straight truss piece that can be connected to other truss pieces to build a custom trussing configuration. Constructed of high-grade aluminium, ProX F32 I-Beam Truss consists of a 50x2mm main tubes and 20x2mm braces.
ProX F32 I-Beam Truss in 2-point design is particularly well-suited for trade shows and shop construction, as well as event technology and as a support system for lighting fixtures. Due to its compact design combined with high load capacity, this system is ideally suited from a simple exhibition stand up to a complex rig construction project.
ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F32 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: F32 Truss Loading Chart
Compact & Durable Truss for Trade Shows, Event Technology & Lighting
The ProX XT-F32-492 Truss Straight Segment is a 1500mm (59-inch) long, 290mm (11.4-inch) wide straight truss piece that can be connected to other truss pieces to build a custom trussing configuration. Constructed of high-grade aluminium, ProX F32 I-Beam Truss consists of a 50x2mm main tubes and 20x2mm braces.
ProX F32 I-Beam Truss in 2-point design is particularly well-suited for trade shows and shop construction, as well as event technology and as a support system for lighting fixtures. Due to its compact design combined with high load capacity, this system is ideally suited from a simple exhibition stand up to a complex rig construction project.
ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F32 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
Always know your load weight for your equipment: F32 Truss Loading Chart
- Perfect for trade shows, shop construction, event technology and as a support system for lighting fixtures
- Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
- Includes connecting hardware
- Manufactured to exacting specifications in ProX's own factory
- TÜV-certified aluminum welding

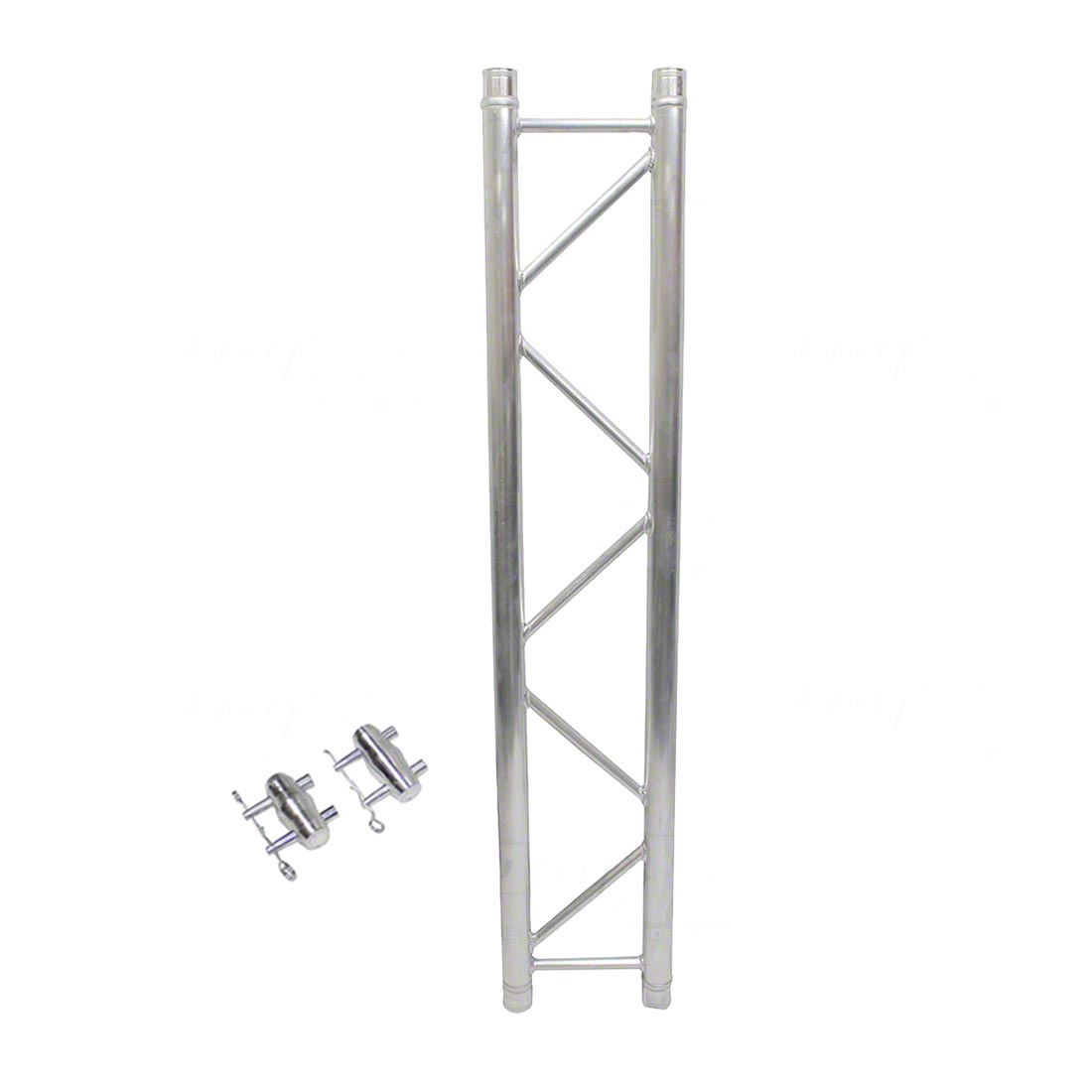

- 1 - F32 I-Beam Truss Straight Segment, 1.5m
- 2 - Conical Connector
- 4 - Pin
- 4 - Safety Clip

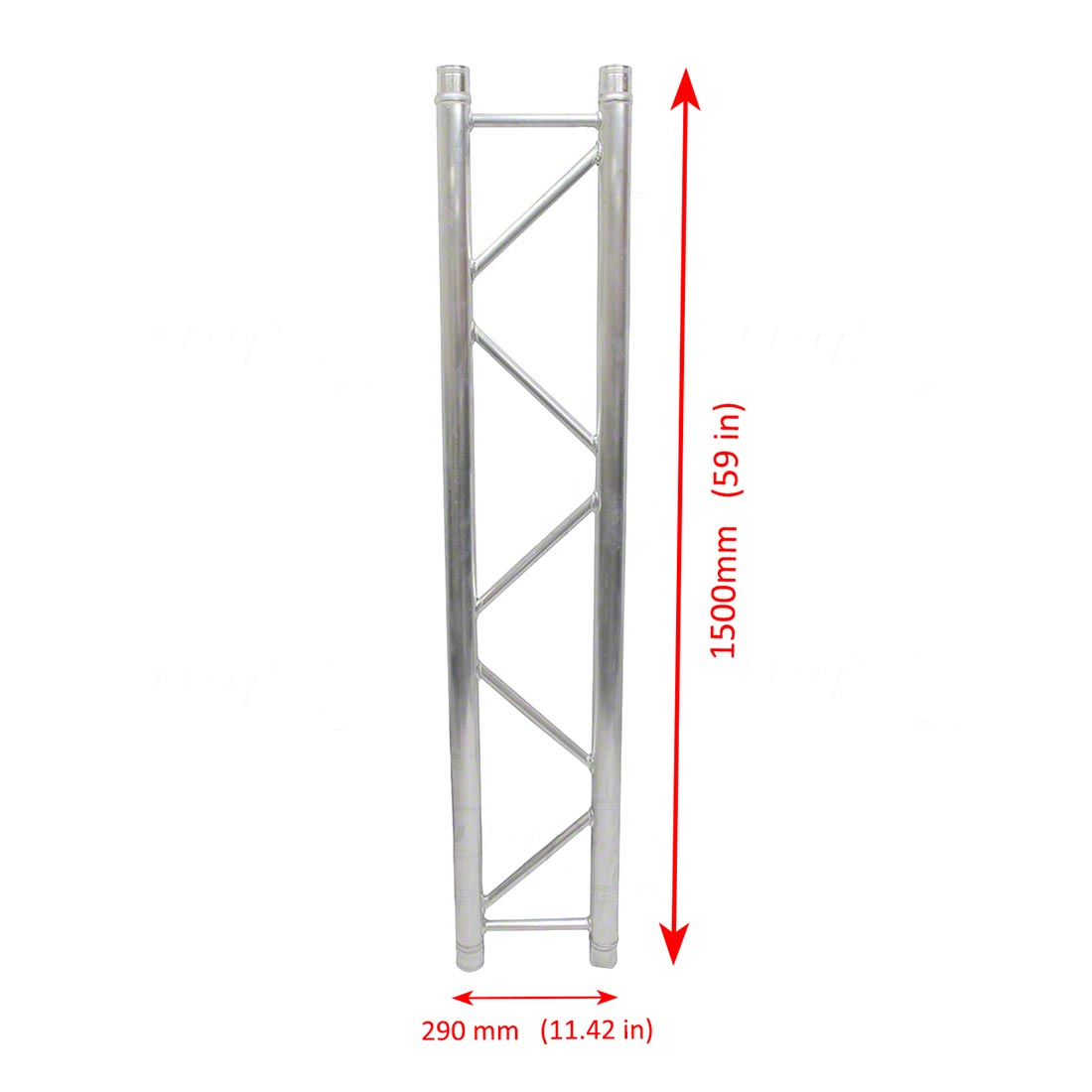

- Dimensions:
- Total Width: 290mm (11.41 inches)
- Total Depth: 50mm (2 inches)
- Total Length: 1500mm (59 inches)
- Main Tubes: 50mm (2") diameter, 2mm thickness
- Braces: 20mm (3/4") diameter, 2mm thickness
- Weight: 8 lbs
- Material: Aluminium EN-AWT6 6082
- Safety Certifications: TÜV certified
- 1-Year Manufacturer Limited Warranty (excludes use as rental equipment)
