A Lightweight Portable Ramp That Folds For Easy Storage

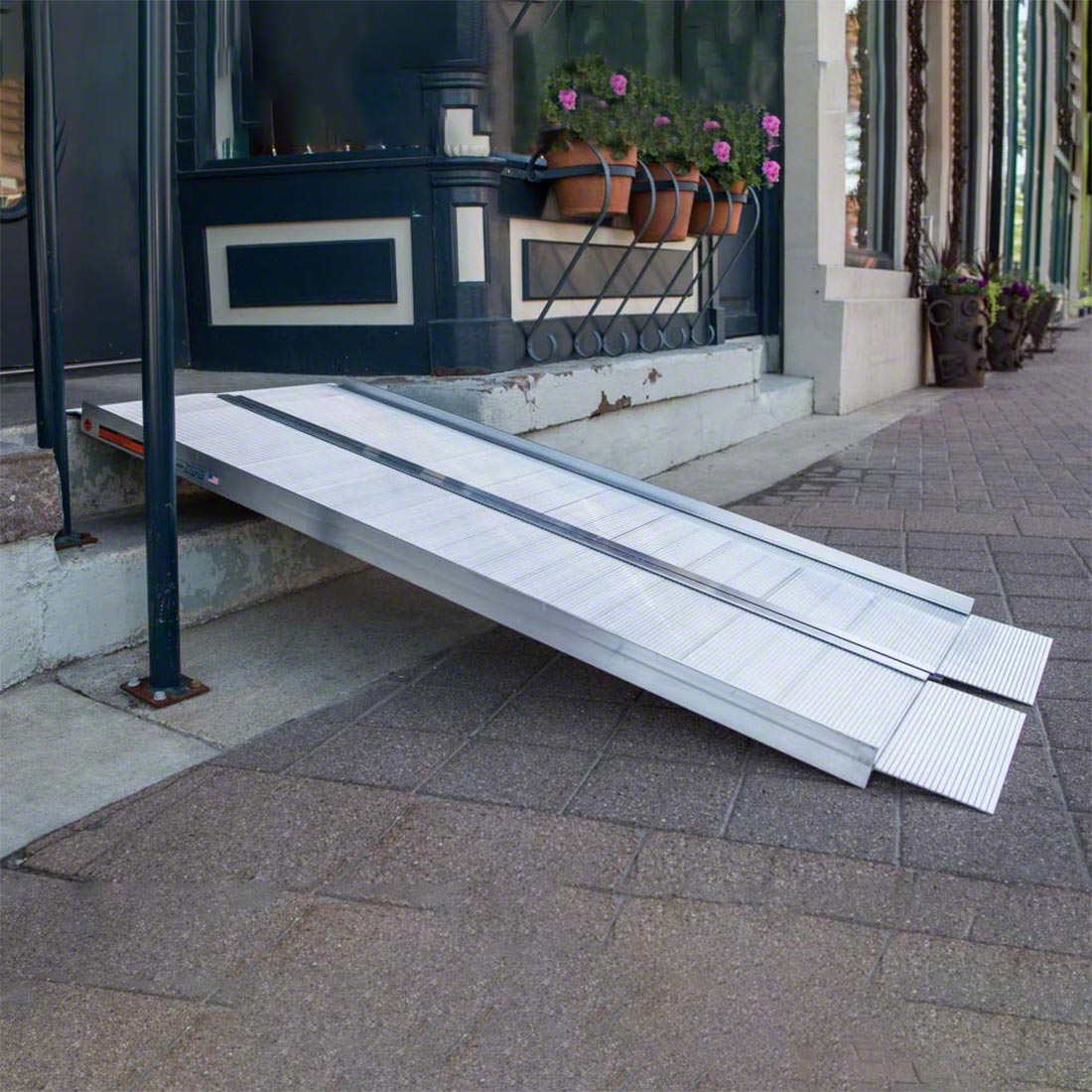

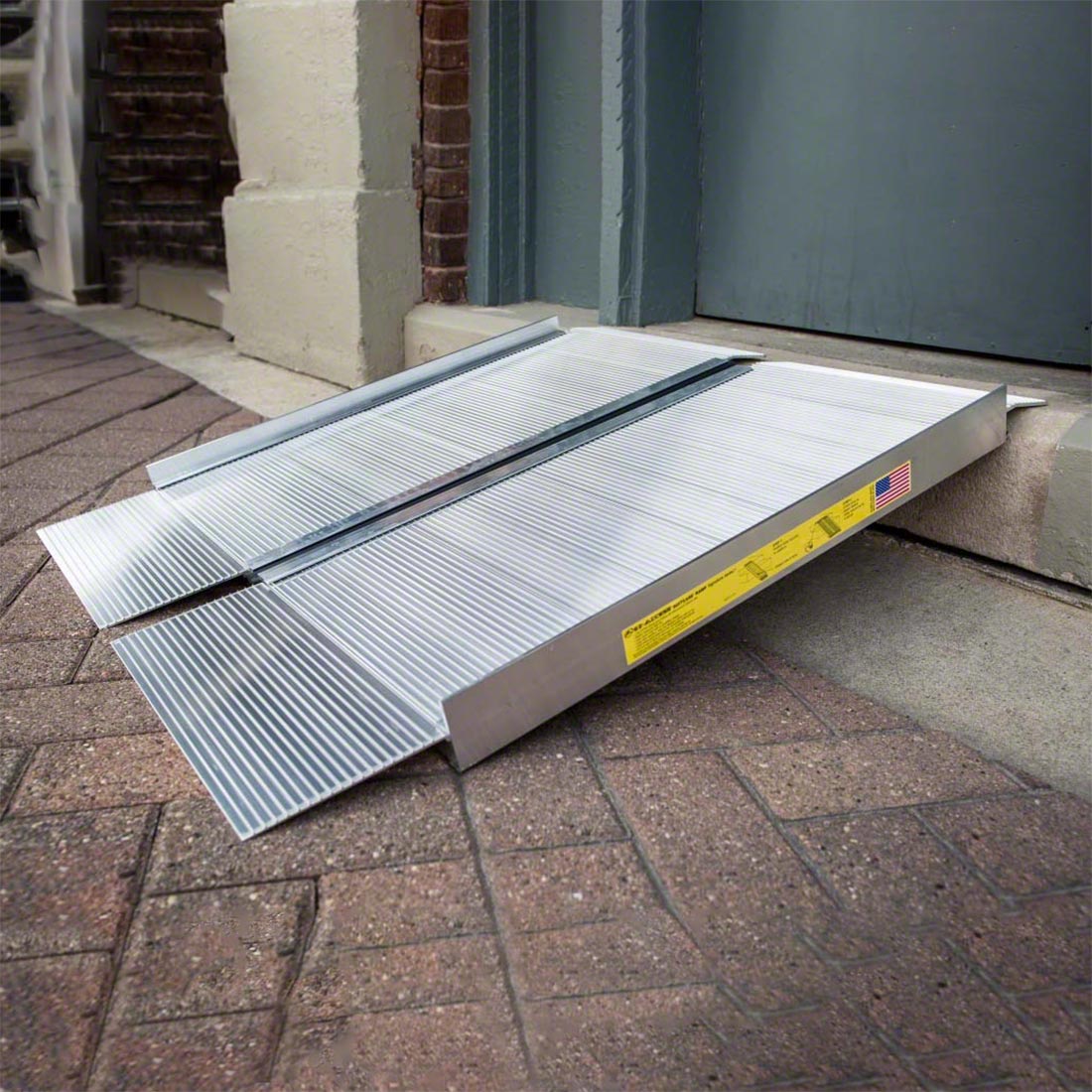

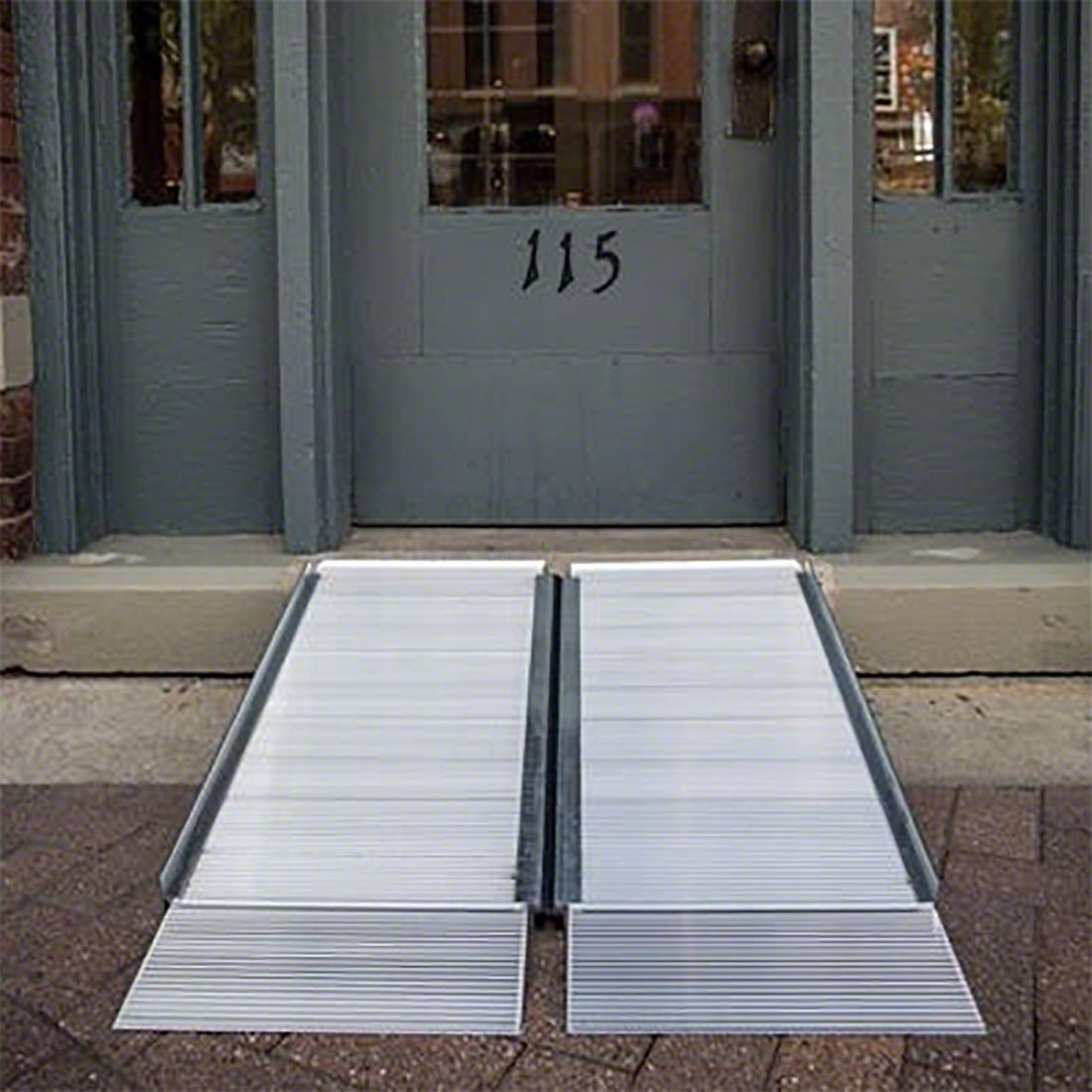

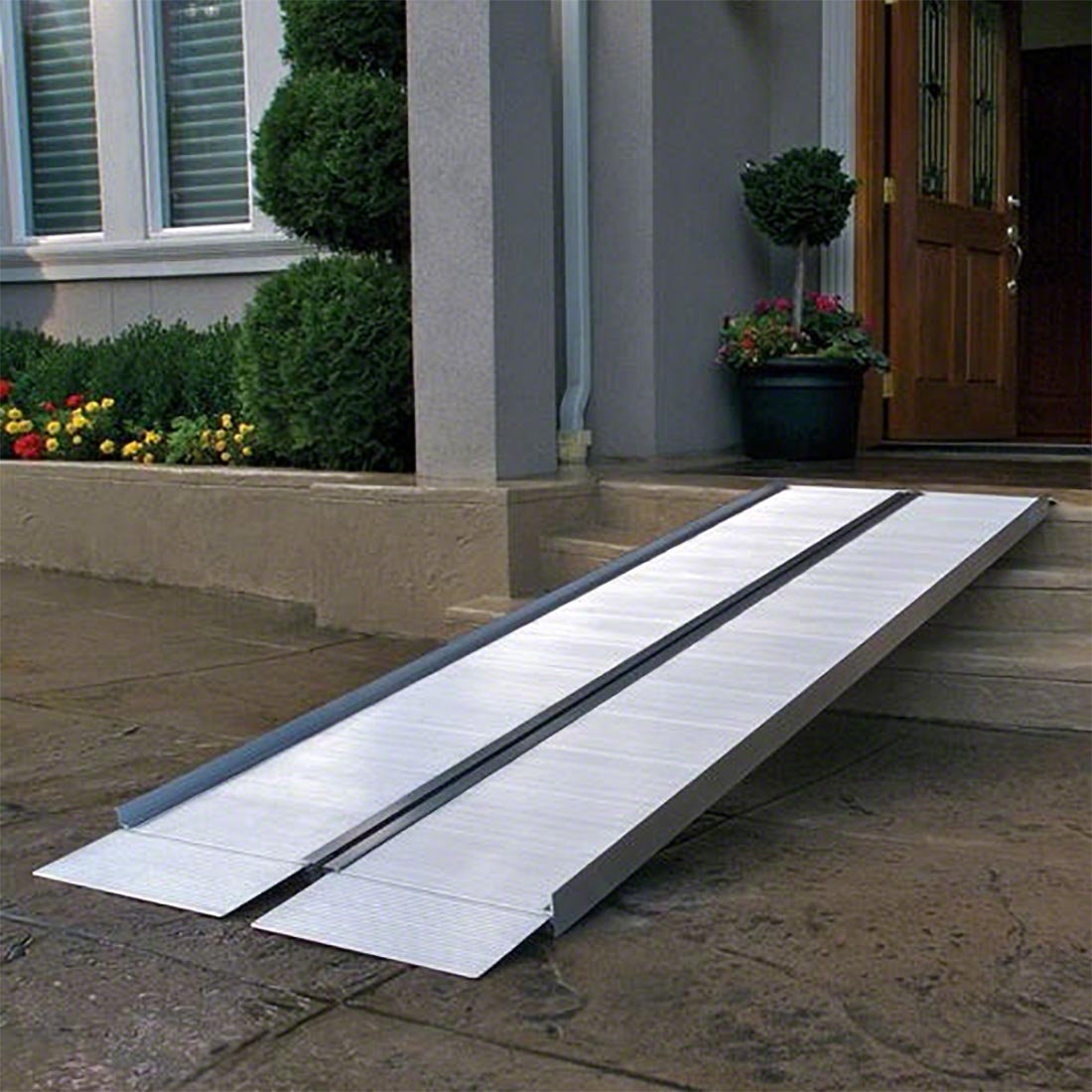

The EZ-Access SUITCASE® Singlefold Portable Ramp provides quick and safe access for wheelchairs and scooters into vehicles, up steps or over curbs. Designed for high traffic use, this durable ramp supports up to 800 lbs and is available in 2-foot to 5-foot lengths or 6-foot to 8-foot lengths.
Manufactured from high-strength, lightweight aluminum, this ramp features a full-length hinge and folds in half for easy transport and storage. The convenient and portable design gives you quick accessibility on the go with ergonomically-designed carrying handles, and the bottom transition plates adjust to accommodate uneven terrains.
Add the optional EZ-Access Top Lip Extension to extend the top lip from 3 inches to 9 inches to clear the rear bumper of SUVs and vans.
** Please note: The use of the Top Lip Extension reduces the weight capacity of the ramp to 500 lbs.
A Lightweight Portable Ramp That Folds For Easy Storage
The EZ-Access SUITCASE® Singlefold Portable Ramp provides quick and safe access for wheelchairs and scooters into vehicles, up steps or over curbs. Designed for high traffic use, this durable ramp supports up to 800 lbs and is available in 2-foot to 5-foot lengths or 6-foot to 8-foot lengths.
Manufactured from high-strength, lightweight aluminum, this ramp features a full-length hinge and folds in half for easy transport and storage. The convenient and portable design gives you quick accessibility on the go with ergonomically-designed carrying handles, and the bottom transition plates adjust to accommodate uneven terrains.
Add the optional EZ-Access Top Lip Extension to extend the top lip from 3 inches to 9 inches to clear the rear bumper of SUVs and vans.
** Please note: The use of the Top Lip Extension reduces the weight capacity of the ramp to 500 lbs.
- Great for high-traffic use in all weather conditions

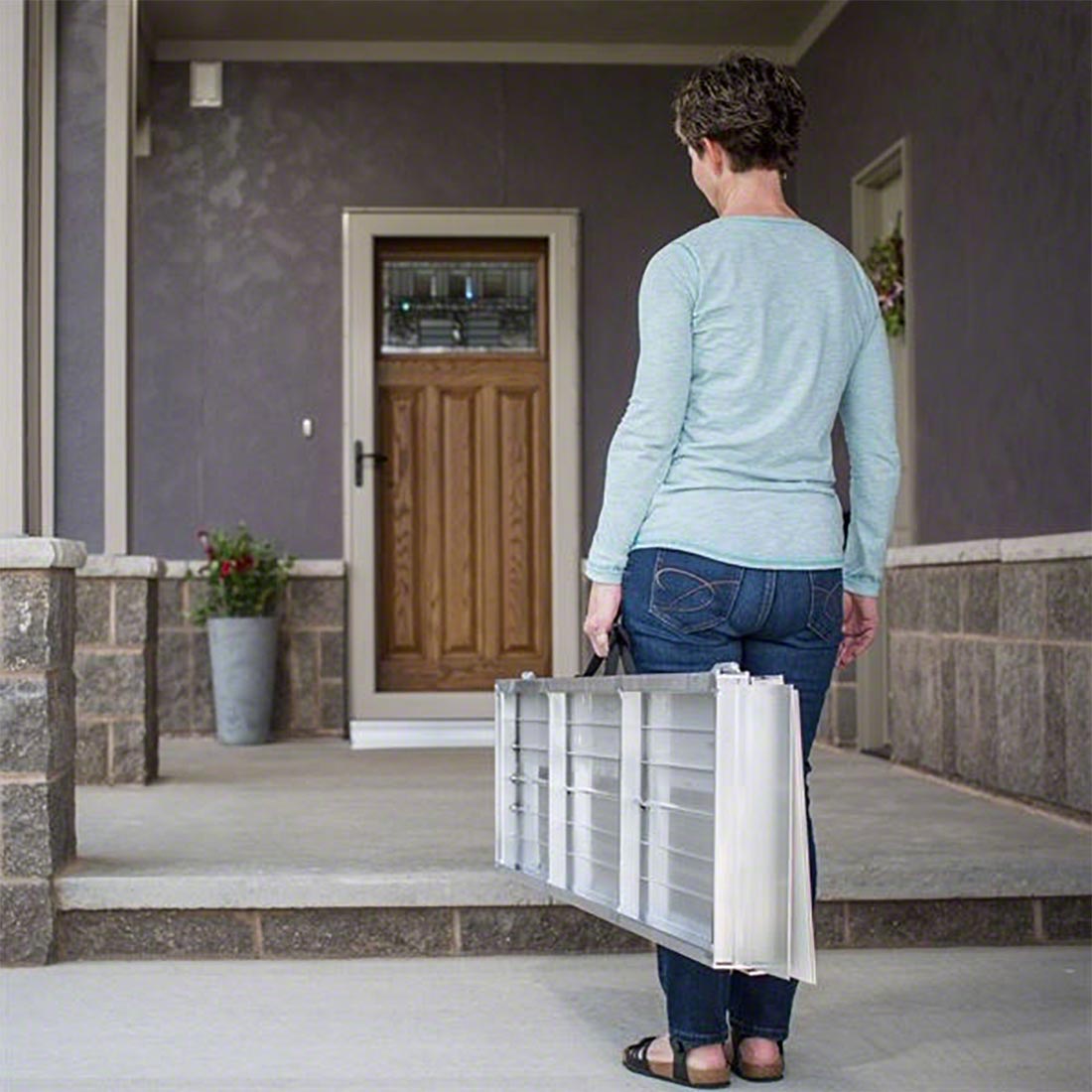

- Folds in half and is lightweight for easy transport

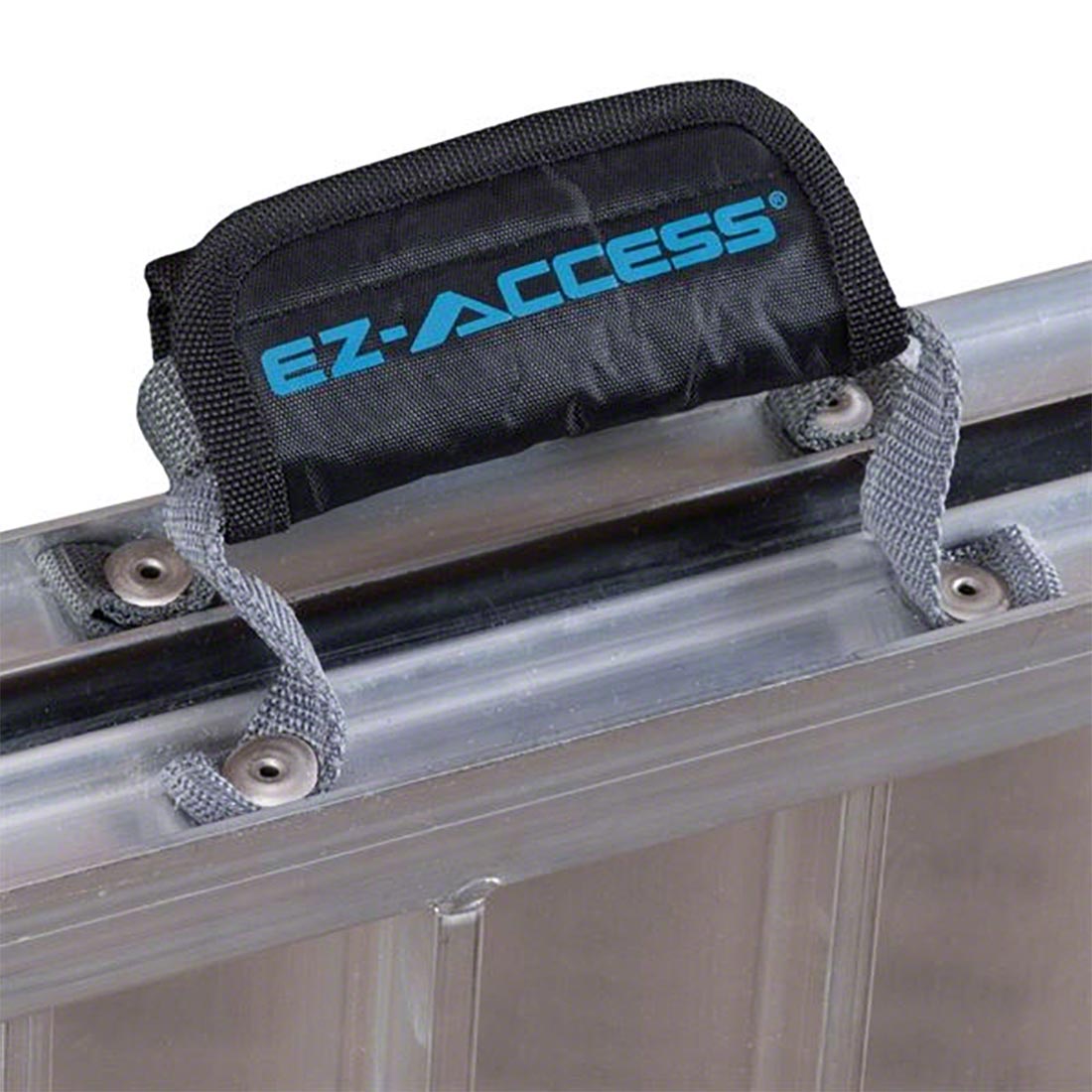

- Includes flexible, non-breakable carry handles
- Textured aluminum surface for increased traction
- Full-length single-fold hinge for strength and stability

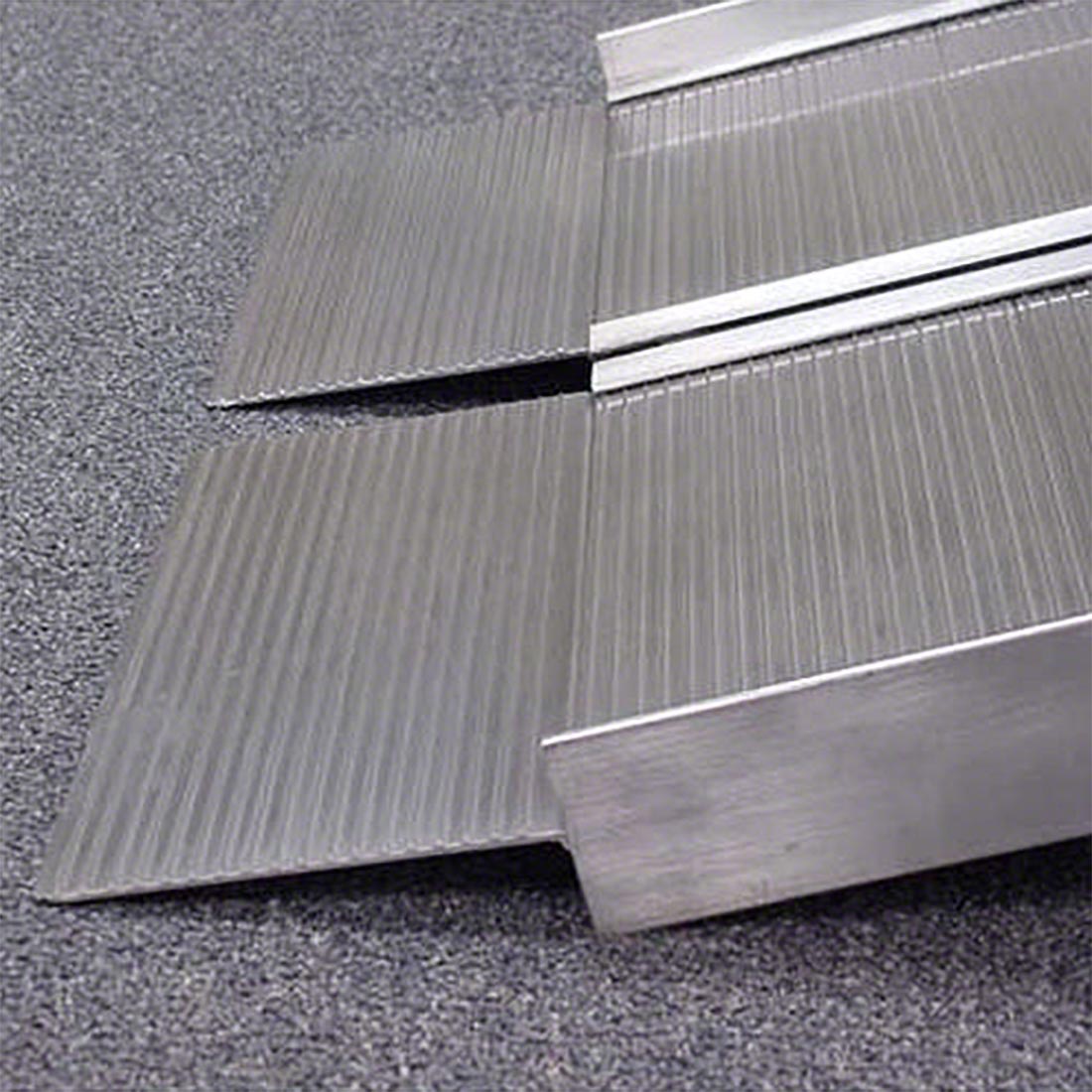

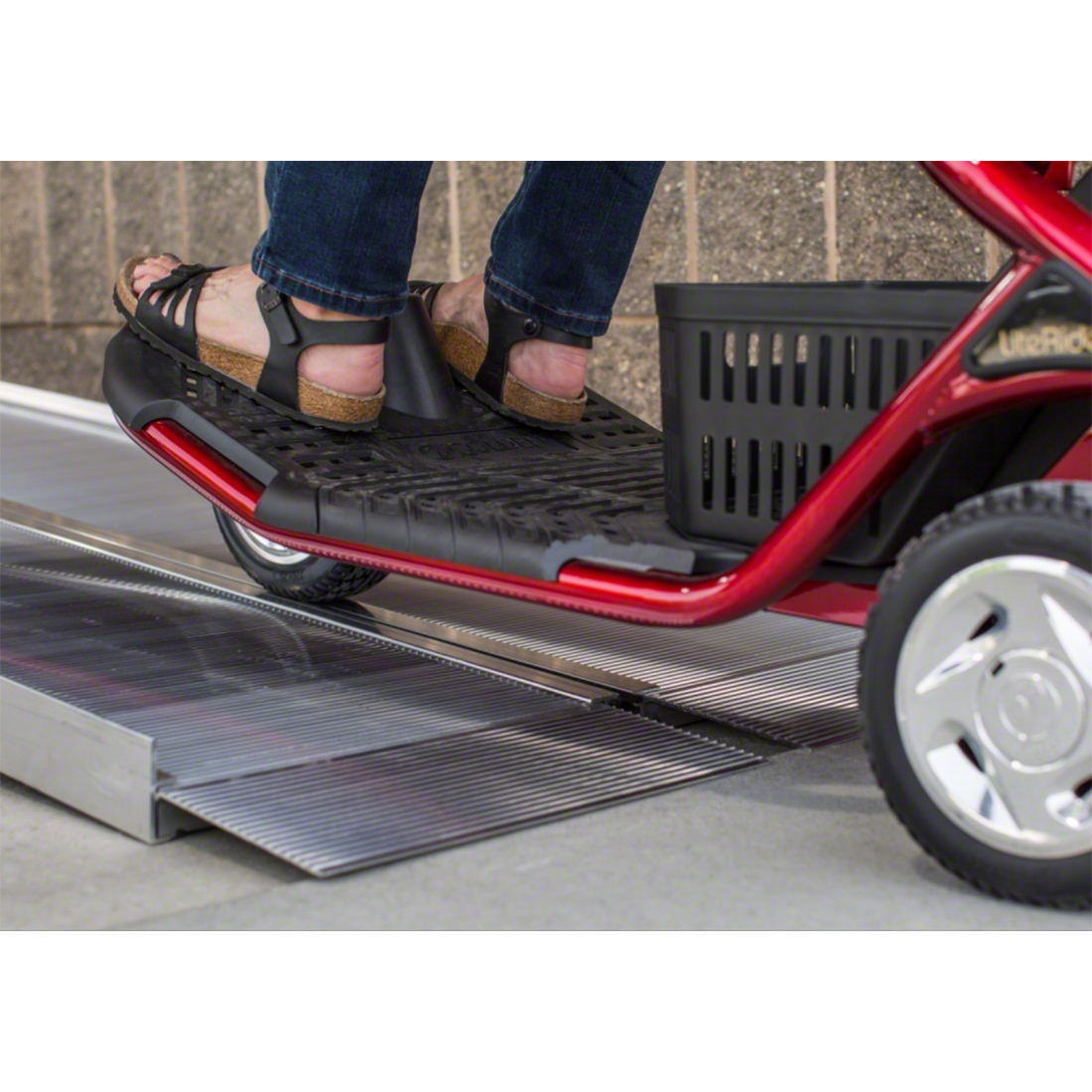

- Two independently self-adjusting bottom transition plates
- Available in 3 lengths from 6 feet to 8 feet long
- 800 lb weight capacity (or 500 lb weight capacity when used with top lip extension)
| SUITCASE SF02 | SUITCASE SF03 | SUITCASE SF04 | SUITCASE SF05 | SUITCASE SF06 | SUITCASE SF07 | SUITCASE SF08 |
|---|
| Made of Aluminum | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Slip-resistant Surface | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Built-in carrying handle | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Usable Size | 2' x 30" | 3' x 30" | 4' x 30" | 5' x 30" | 6' x 30" | 7' x 30" | 8' x 30" |
| Folding Size (L x W x H) | 24" x 15" x 4" | 36" x 15" x 4" | 48" x 15" x 4" | 60" x 15" x 4" | 72" x 15" x 4" | 84" x 15" x 4" | 96" x 15" x 4" |
| Weight* | 11 lbs | 17 lbs | 23 lbs | 29 lbs | 34 lbs | 41 lbs | 47 lbs |
| Weight Capacity | 800 lbs | 800 lbs | 800 lbs | 800 lbs | 800 lbs | 800 lbs | 800 lbs |
| For Wheelchairs & Scooters | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Usage Guidelines** | Curbs
1 Step | Curbs
1 Step | Curbs
1-2 Steps | Curbs
1-2 Steps
Some minivans | 1-3 Steps
Some minivans
SUVs | 1-3 Steps
Some minivans
SUVs | 2-3 Steps
Some minivans
SUVs |
NOTE: Weights and dimensions are approximate and subject to change.
* Weights are approximate and may vary.
** Consult your mobility equipment's owner guide for the proper slope/incline. Never exceed its recommendations. For additional specs and dimensions, see Downloadable Manuals & Guides above.
