A Heavy-Duty Aluminum Wheelchair Ramp for Commercial Spaces

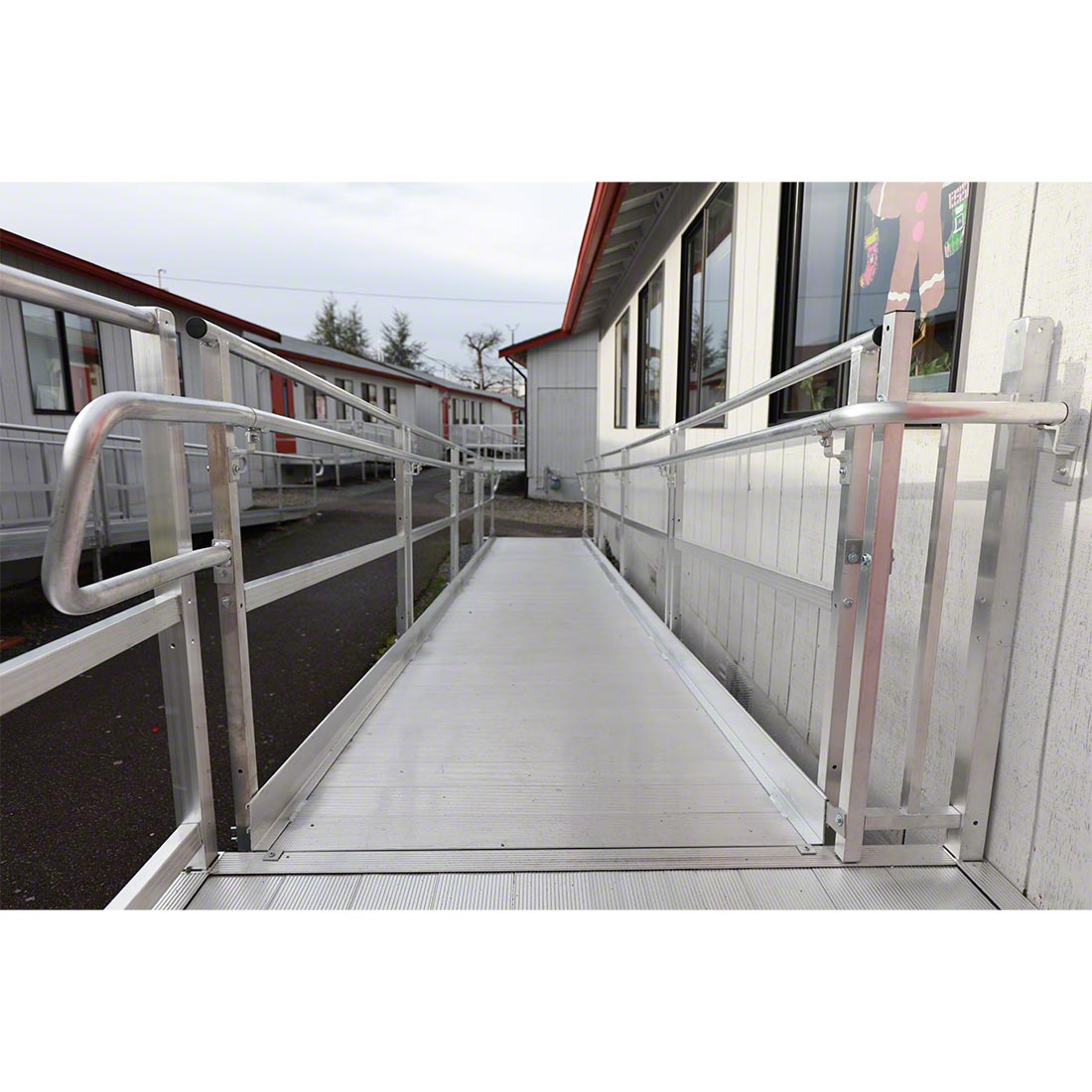

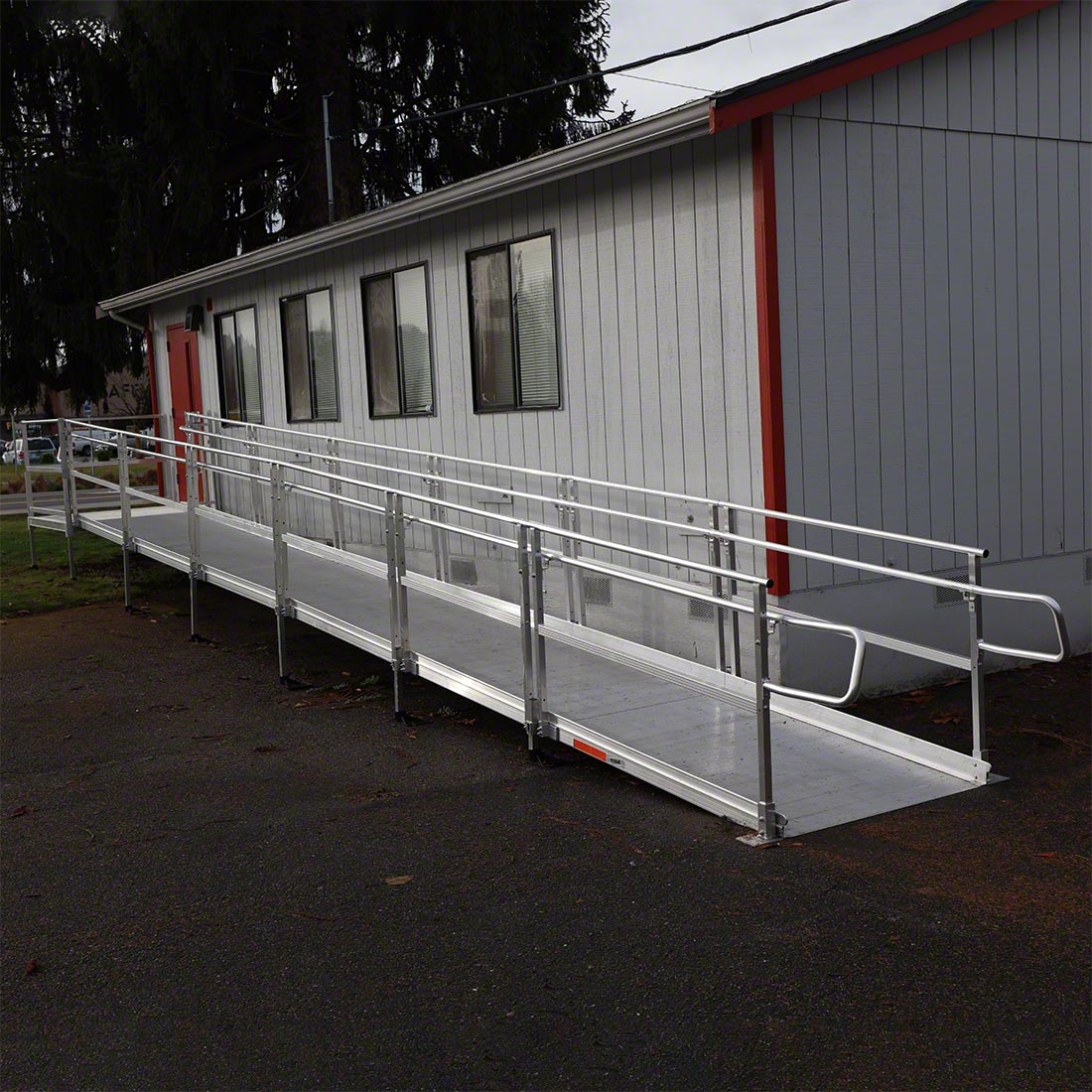

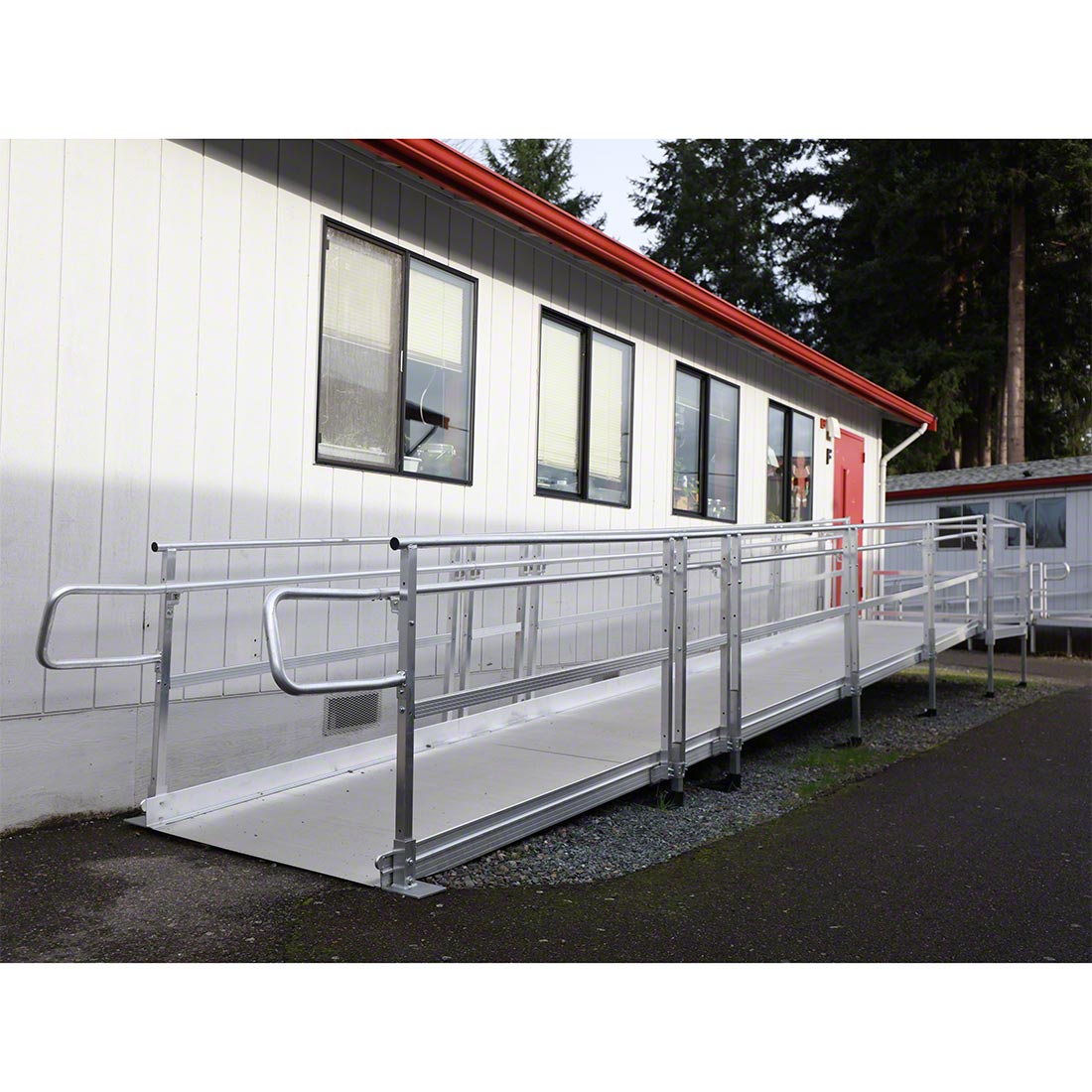

The EZ-ACCESS® PATHWAY HD Solo Modular Ramp System is engineered to provide safe, customizable access to commercial and institutional spaces. This all-aluminum, commercial-grade ramp system is lightweight and virtually maintenance-free. The entire system is easy to install in just a few hours with minimal tools.
Standard configuration kits include your choice of 16 ramp lengths from 6' to 36' long with a 5'x5' landing platform, two-line handrails, end loops, legs and feet. Installation is quick and easy with universal components, pre-assembled sections, and independently adjustable legs. The Pathway HD system is modular, so it can easily be reconfigured, moved or expanded if your mobility needs change.
Measurement: For a standard 12:1 slope (4.8° angle), choose the ramp length that matches your rise (e.g., an 8-foot ramp for an 8-inch rise) or see the Measurement Guide for other angles and options.
A Heavy-Duty Aluminum Wheelchair Ramp for Commercial Spaces
The EZ-ACCESS® PATHWAY HD Solo Modular Ramp System is engineered to provide safe, customizable access to commercial and institutional spaces. This all-aluminum, commercial-grade ramp system is lightweight and virtually maintenance-free. The entire system is easy to install in just a few hours with minimal tools.
Standard configuration kits include your choice of 16 ramp lengths from 6' to 36' long with a 5'x5' landing platform, two-line handrails, end loops, legs and feet. Installation is quick and easy with universal components, pre-assembled sections, and independently adjustable legs. The Pathway HD system is modular, so it can easily be reconfigured, moved or expanded if your mobility needs change.
Measurement: For a standard 12:1 slope (4.8° angle), choose the ramp length that matches your rise (e.g., an 8-foot ramp for an 8-inch rise) or see the Measurement Guide for other angles and options.
- Features a 48-inch wide walkway to a 5-foot square landing platform
- All walking surfaces have a raised-rib tread for cross-directional traction

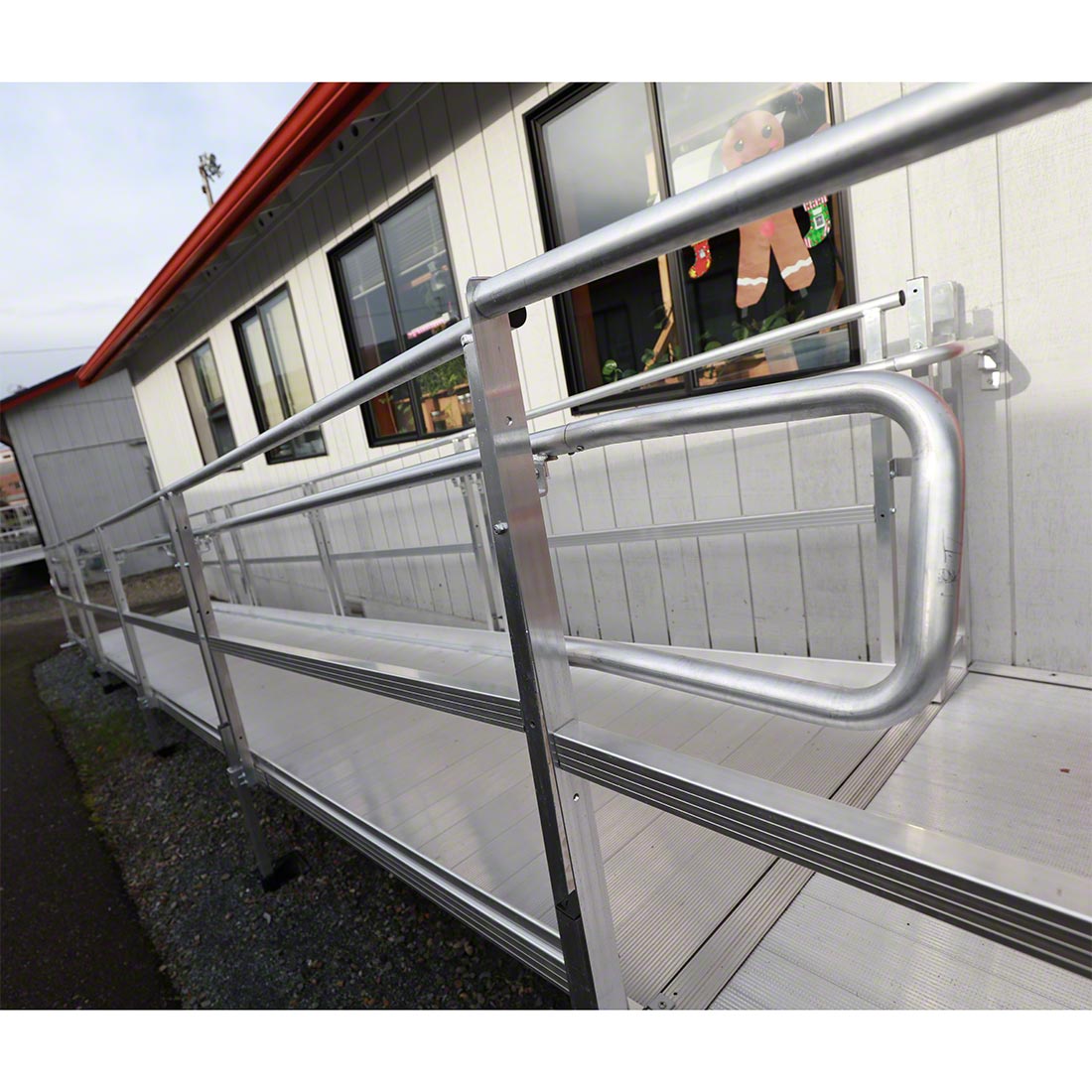

- Ramp sides feature 4-inch curbs and continuous two-line handrails
- Legs are independently adjustable for easy leveling over uneven ground
- Manufactured from aircraft-quality, corrosion-resistant aluminum to withstand years of high-traffic use in all weather conditions, will not rust or rot
- Easy to install in a few hours by 2-3 people
- Available in lengths from 6' to 36' long
- Overall Dimensions & Weight:
- 6' Ramp: 154.5"L x 65.5"W, 250 lbs
- 8' Ramp: 178.5"L x 65.5"W, 315 lbs
- 10' Ramp: 202.5"L x 65.5"W, 345 lbs
- 12' Ramp: 226.5"L x 65.5"W, 390 lbs
- 14' Ramp: 255.5"L x 65.5"W, 457 lbs
- 16' Ramp: 274.5"L x 65.5"W, 487 lbs
- 18' Ramp: 298.5"L x 65.5"W, 532 lbs
- 20' Ramp: 322.5"L x 65.5"W, 598 lbs
- 22' Ramp: 346.5"L x 65.5"W, 628 lbs
- 24' Ramp: 370.5"L x 65.5"W, 674 lbs
- 26' Ramp: 394.5"L x 65.5"W, 742 lbs
- 28' Ramp: 418.5"L x 65.5"W, 772 lbs
- 30' Ramp: 442.5"L x 65.5"W, 817 lbs
- Weight Capacity: 100 lbs per square foot
