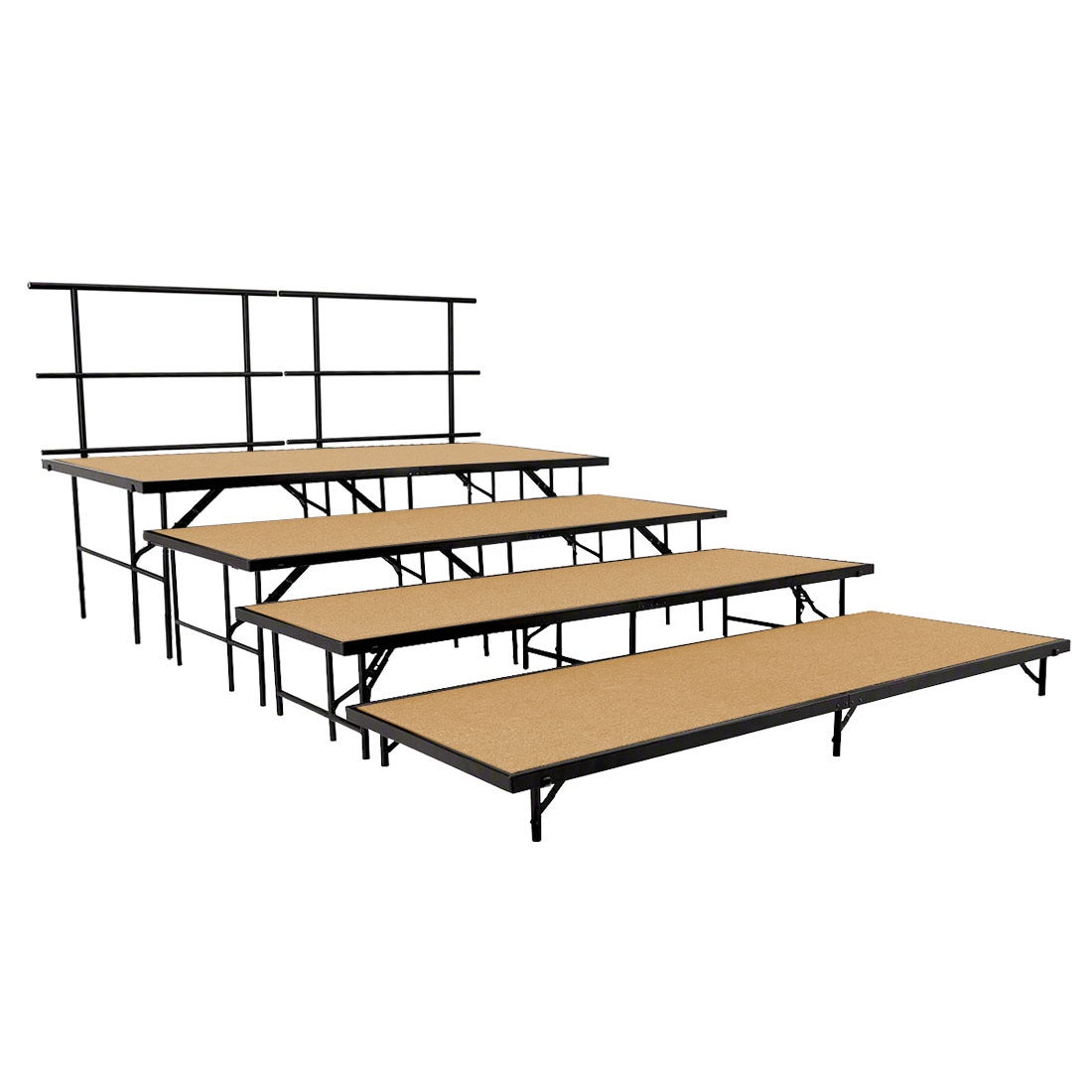

National Public Seating SST364LHB 4-Tier Seated Riser Set, Hardboard (36" Deep Tiers)

Convenient 4-Tier Seated Riser Set
Tempered Hardboard Surface
10-Year Manufacturer's Warranty

Ships Direct from NPS (1-2 weeks)

Usually requires 1-2 weeks for production, then ships directly from NPS. This item is made specially for you and is not returnable.

Retail: $3,903.00

Price: $2,076.40

You Save $1,826.60 (46.8%)

Quantity:

National Public Seating SST364LHB 4-Tier Seated Riser Set, Hardboard (36" Deep Tiers)

Elevate your performance venue to the next level with this seated riser stage set!

The NPS 4-Tier Seated Riser Carpeted Stage Set is the reliable and affordable choice for your school performances and assemblies. Users are supported by a heavy-duty, 16-gauge steel, black powder-coated frame. The premium 3/4" thick plywood deck is durable and features a heavy-duty hardboard surface. Legs are constructed with 14-gauge steel tubing and feature simple and safe spring-loaded locking mechanisms allowing for quick set-up assembly and folds up easily for manageable portable storage.

The stage offers a secure Standard Uniform Load Rating of over 200 lbs per square foot. High-impact plastic glides will ensure floors are protected from damage. Firmly welded ganging devices let users combine equal-height stages to create a large single stage platform or assemble different sizes to create choral or band riser configurations. This set includes 14-gauge guardrails for extra safety.

Please Note: Guardrails are recommended while using any stages or risers to ensure safety.

Features

Platform

Constructed with a ¾" thick solid plywood core, the riser shall be surfaced with one of the following: Option 1: Carpet, Option 2: 1/8" thick tempered hardboard. The edges of the platform shall be routed to allow the frame to fit flush with the top surface and cover the ends of the carpeting.

Frame

16 gauge, 1-13/16" high formed steel channel frame shall be reinforced with 16 gauge steel angle welded to the inside of the channel. The angle shall provide a continuous support to which the decking is secured with screws placed a maximum of 9" apart. The frame shall completely enclose the top, bottom and edges of the decking perimeter preventing the decking from becoming loose and damaged. All areas where frame parts are joined together shall be reinforce with steel plates attached with rivets.

Leg Structure

Each leg structure shall be constructed of 1.05" diameter, 14 gauge steel tubing capped at the point of floor contact with high impact plastic glides. The vertical load bearing members shall be joined at the top by full width, steel tube to provide maximum support to the stage deck. The top of each leg assembly shall fold open and closed, using 16 gauge steel saddle clips that are secured with at least four screws. Leg assemblies shall be braced by friction type braces, equipped with a spring locking device to secure the legs in the open and closed position. Braces shall be secured to the leg assembly with rivets and to the deck using 8 screws installed through the decking. Legs shall open and close using only one hand. Gravity ring type brace locks are not acceptable.

Ganging

Stages and risers shall be equipped with drop-in couplings that allow units of the same or different heights to be joined together. All ganging devices shall be permanently secured to each unit. Ganging devices that is not permanently attached are not acceptable. Finish All metal parts are to be finished with a black thermofused epoxy powdercoating.

Capacity

All metal parts shall be designed to carry a uniform live load of at least 200 lbs. per square foot.

Portability

Stages and risers shall be capable of being completely set-up and taken apart quickly, without the need for tools, by two people of average strength.

Package Contents

1 - NPS 36"x96" Stage Panel, 8" High
1 - NPS 36"x96" Stage Panel, 16" High
1 - NPS 36"x96" Stage Panel, 24" High
1 - NPS 36"x96" Stage Panel, 32" High
2 - NPS 48" Guard Rails

Video

Additional Information

Width: 96"
Depth: 144"
Stage Height: 8"-32"

Ratings & Reviews

National Public Seating SST364LHB 4-Tier Seated Riser Set, Hardboard (36" Deep Tiers)

Overall Rating: 5.00

1 Ratings

Rating:

3/12/2019

Perfect

Love these for our new black boxish theater space. They are utilitarian for sure but perfect for our look and the most economical option we could find after much searching. They were easy to assemble and are sturdy. Initially we had planned to paint the decks but we ended up pretty happy with the wood finish. It's darker than expected and looks great with our seating. Garnett was particularly great to work with!
