Biljax AS2100 Horizontal Brace, 8-Foot Starter

  • Biljax AS2100 Horizontal Brace, 8-Foot Starter - BJX-0105-06-103
  • Biljax AS2100 Horizontal Brace, 8-Foot Starter - BJX-0105-06-103
  • Biljax AS2100 Horizontal Brace, 8-Foot Starter - BJX-0105-06-103
Be the first to review this item! | SKU:
BJX-0105-06-103
  • Installs quickly and easily
  • Required for Biljax stages over 30" tall
Ships Direct From Biljax

Usually requires 3-5 weeks for production, then ships directly from Biljax. This item is not returnable.


Retail: $93.00
Price: $83.99
You Save $9.01 (9.7%)
Quantity:

No fee net 30 terms and 6 month extended payments for businesses. Learn More

Biljax AS2100 Horizontal Brace, 8-Foot Starter

Bracing is required on Biljax stages with a height greater than 30 inches. Users may choose either horizontal or diagonal bracing.

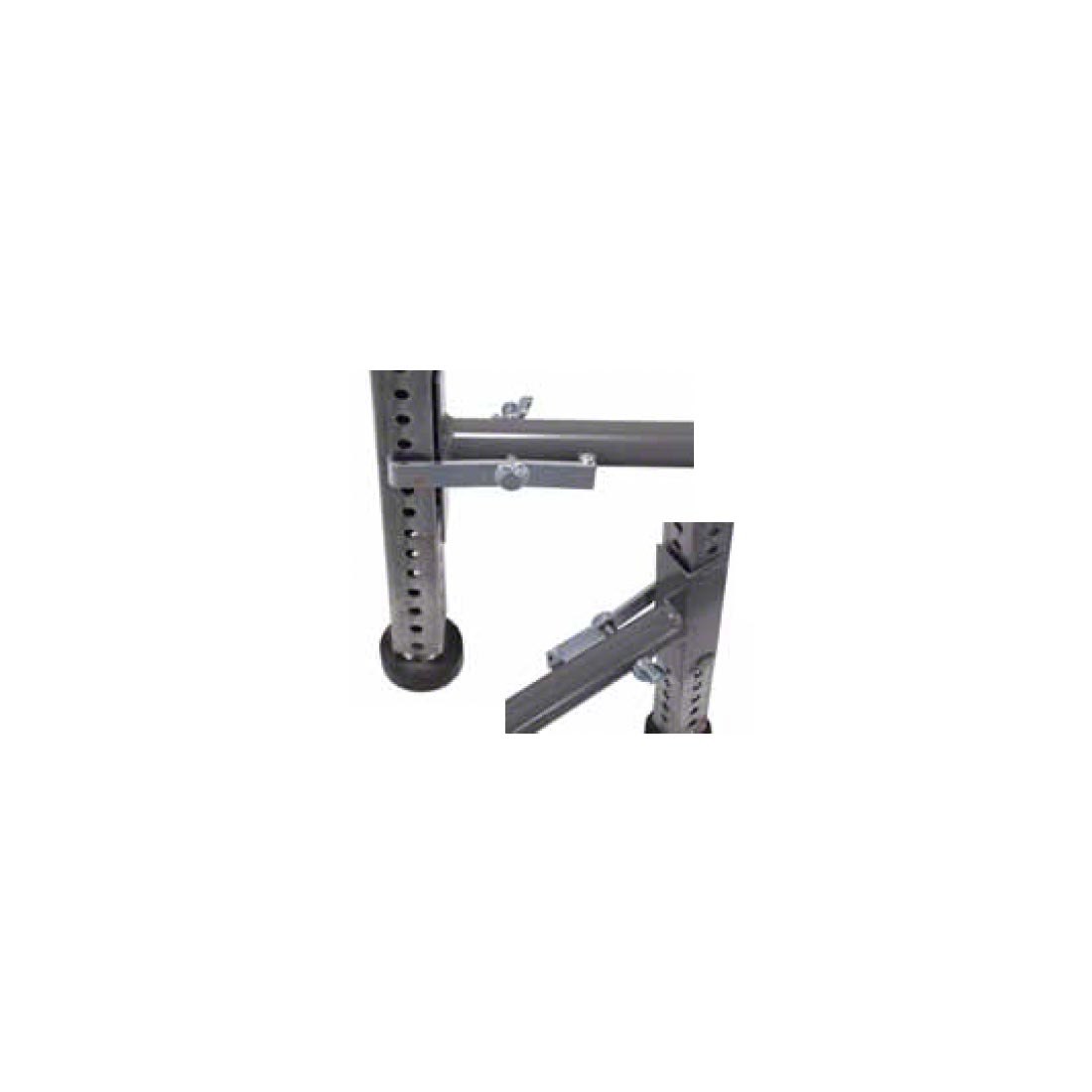

Biljax Horizontal Bracing comes in 4' or 8' sections. Guide posts allow for quick and easy insertion into the stage legs. A wingnut tightens a clamp on the brace to secure it to the leg.

When using horizontal bracing on AS2100 stages, brace each corner and every third bay along each side, using 2 braces per bay for stages between 30 to 48 inches in height, or 3 braces per bay for stages 48 inches and taller. See the Biljax AS2100 Bracing Instructions for more information on bracing requirements and installation.

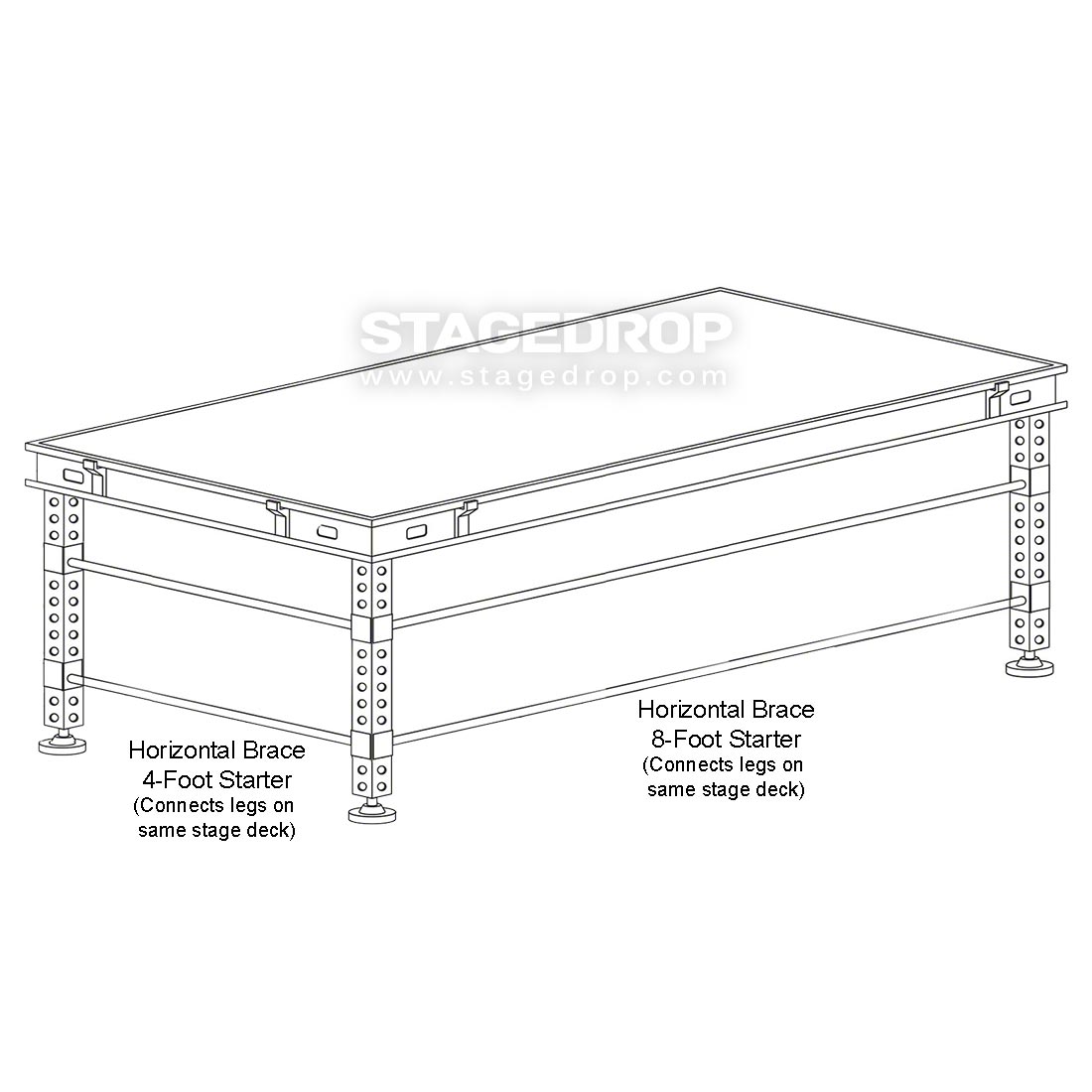

The Biljax Horizontal Brace 8-Foot Starter is used for bracing between two stage legs on the 8-foot side of the same stage deck. The Biljax Horizontal Brace 8-Foot Continuous is used for bracing between two stage legs on the 8-foot side of a stage deck when one of the legs is installed in the adjacent stage deck as a shared leg.

Bracing is required on Biljax stages with a height greater than 30 inches. Users may choose either horizontal or diagonal bracing.

Biljax Horizontal Bracing comes in 4' or 8' sections. Guide posts allow for quick and easy insertion into the stage legs. A wingnut tightens a clamp on the brace to secure it to the leg.

When using horizontal bracing on AS2100 stages, brace each corner and every third bay along each side, using 2 braces per bay for stages between 30 to 48 inches in height, or 3 braces per bay for stages 48 inches and taller. See the Biljax AS2100 Bracing Instructions for more information on bracing requirements and installation.

The Biljax Horizontal Brace 8-Foot Starter is used for bracing between two stage legs on the 8-foot side of the same stage deck. The Biljax Horizontal Brace 8-Foot Continuous is used for bracing between two stage legs on the 8-foot side of a stage deck when one of the legs is installed in the adjacent stage deck as a shared leg.

Package Contents
  • 1 - Biljax Horizontal Brace, 8-Foot Starter
