Biljax AS2100 Adjustable-Height Stage Leg Set, 36"-63"

Legs adjust from 36"-63" high
For use with Biljax AS2100 staging
Telescoping legs allows precise height adjustment

In Stock

Usually leaves our warehouse the same or next business day, but may take longer during periods of high demand.

Retail: $75.00

Price: $67.99

You Save $7.01 (9.3%)

Quantity:

Biljax AS2100 Adjustable-Height Stage Leg Set, 36"-63"

The Biljax AS2100 Staging System is an aluminum stage designed for ease of use and durability. Available in a variety of shapes and dimensions with unique locking hooks, your options for configurations are endless.

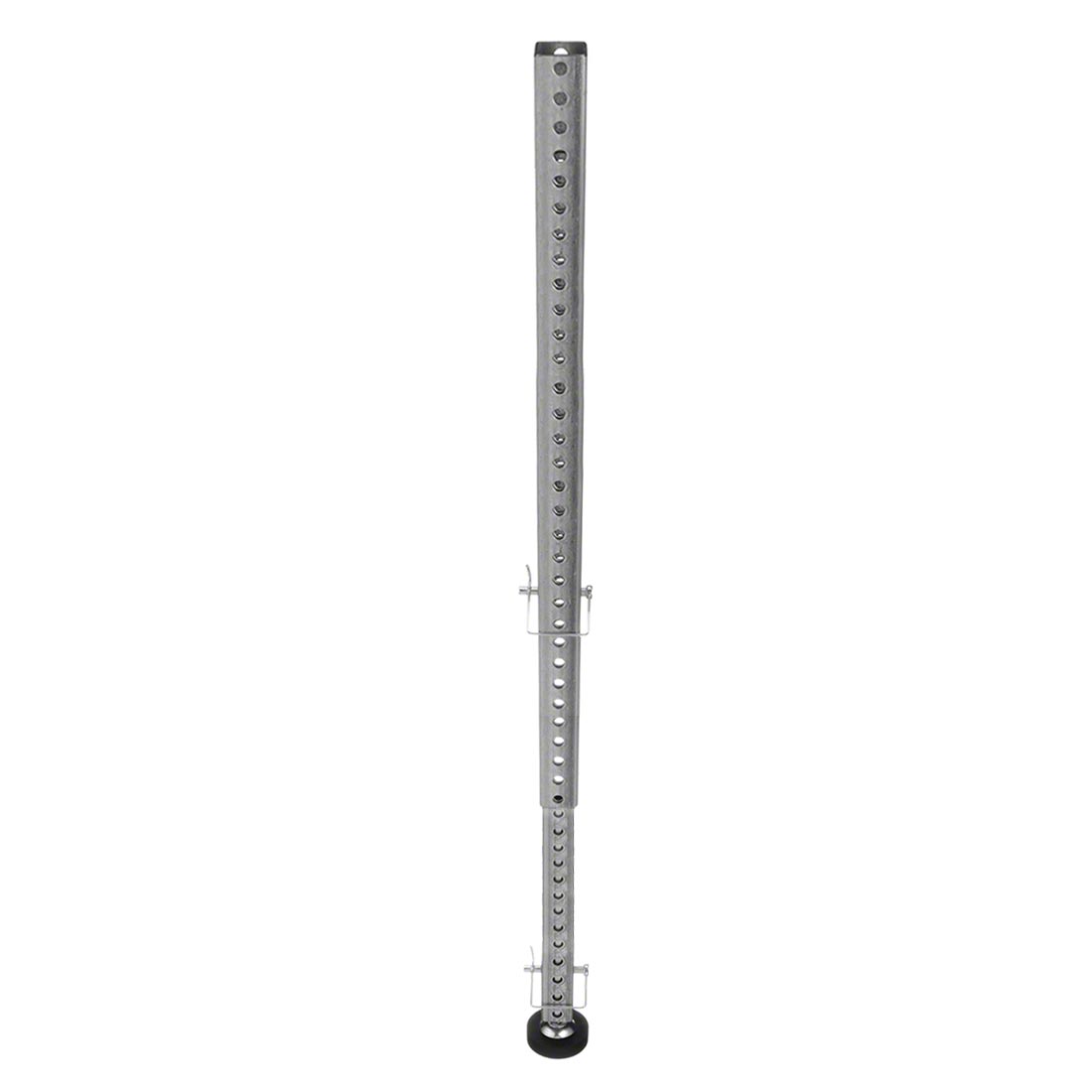

The Biljax AS2100 36"-63" Adjustable Leg Set consists of two 33" long galvanized steel perforated tube stage legs (1.5" and 1.75" in diameter) that telescope to your desired height, an adjustable rubber base pad with collar, and 2 snap pins for securing the legs and base pad. Legs attach easily to Biljax AS2100 stage decks with no tools required.

For use with AS2100, just pull the spring-loaded pin on the stage deck, insert the leg (with the 1-3/4" section at the top) into the corner leg socket, release the pin and tighten thumbscrew attached to the socket. The base pad attaches to the 1-1/2" section at the bottom using a second snap pin.

Also available as 12"-18", 16"-24", 18"-28" or 28"-44".

Features

Telescoping legs and adjustable base pad allow for precise height adjustment between 36"-63" high
No tools required for setup
Meets or exceeds all IBC and UBC code requirements

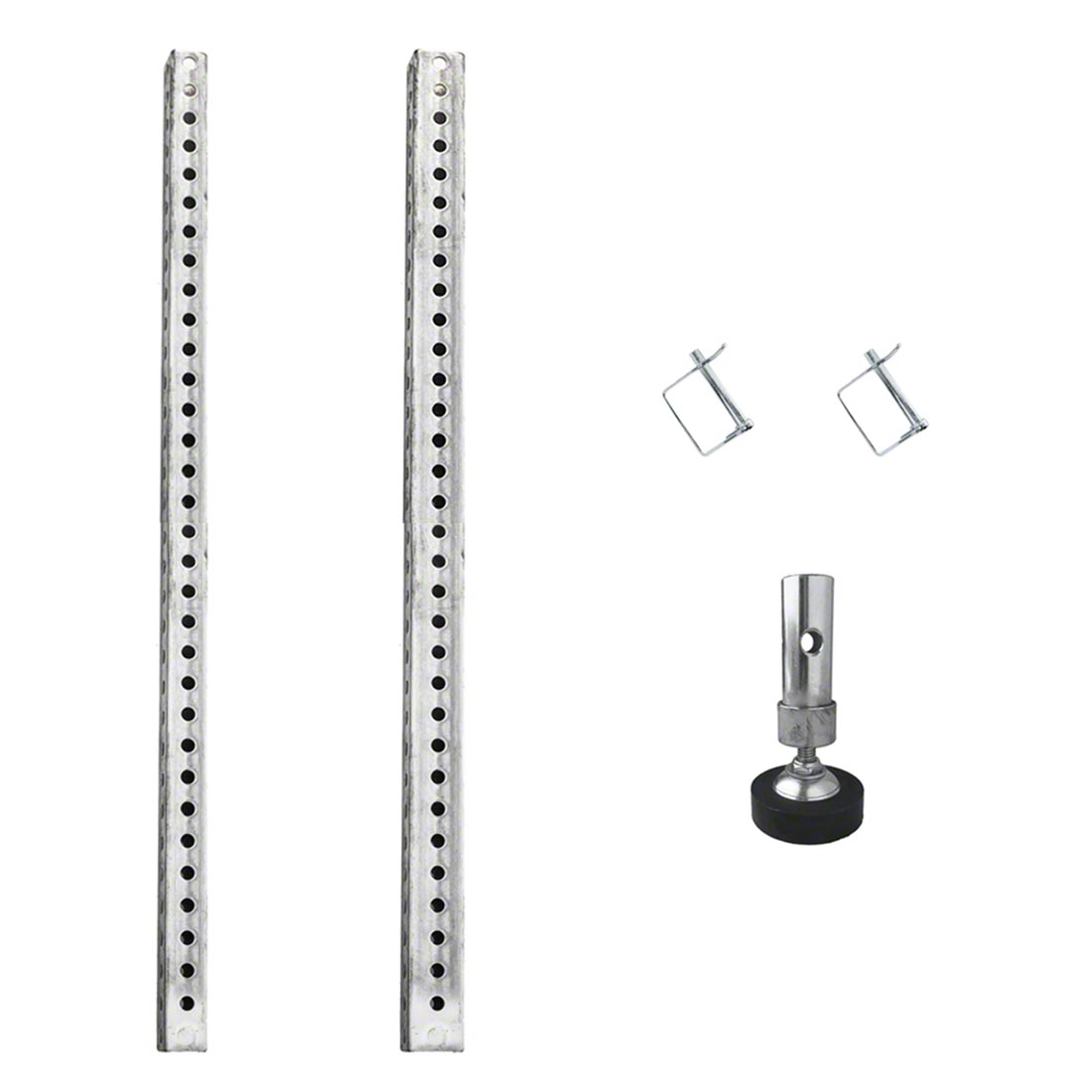

Package Contents

1 - Biljax Leg & Sleeve Set (33" leg/33" sleeve)
2 - Biljax 2-3/8" Snap Pin
1 - Biljax Rubber Base Pad with 1" Collar

Video

Additional Information

Dimensions:
- Assembled: 1.75"W x 1.75"D x 36"-63"H
- Outer Sleeve: 1.75"W x 1.75"D x 33"
- Inner Leg: 1.5"W x 1.5"D x 33"
Weight: 12.5 lbs
Download: Assembly Instructions (PDF)
Video Link: Biljax AS2100 Aluminum Stages - Assembly
