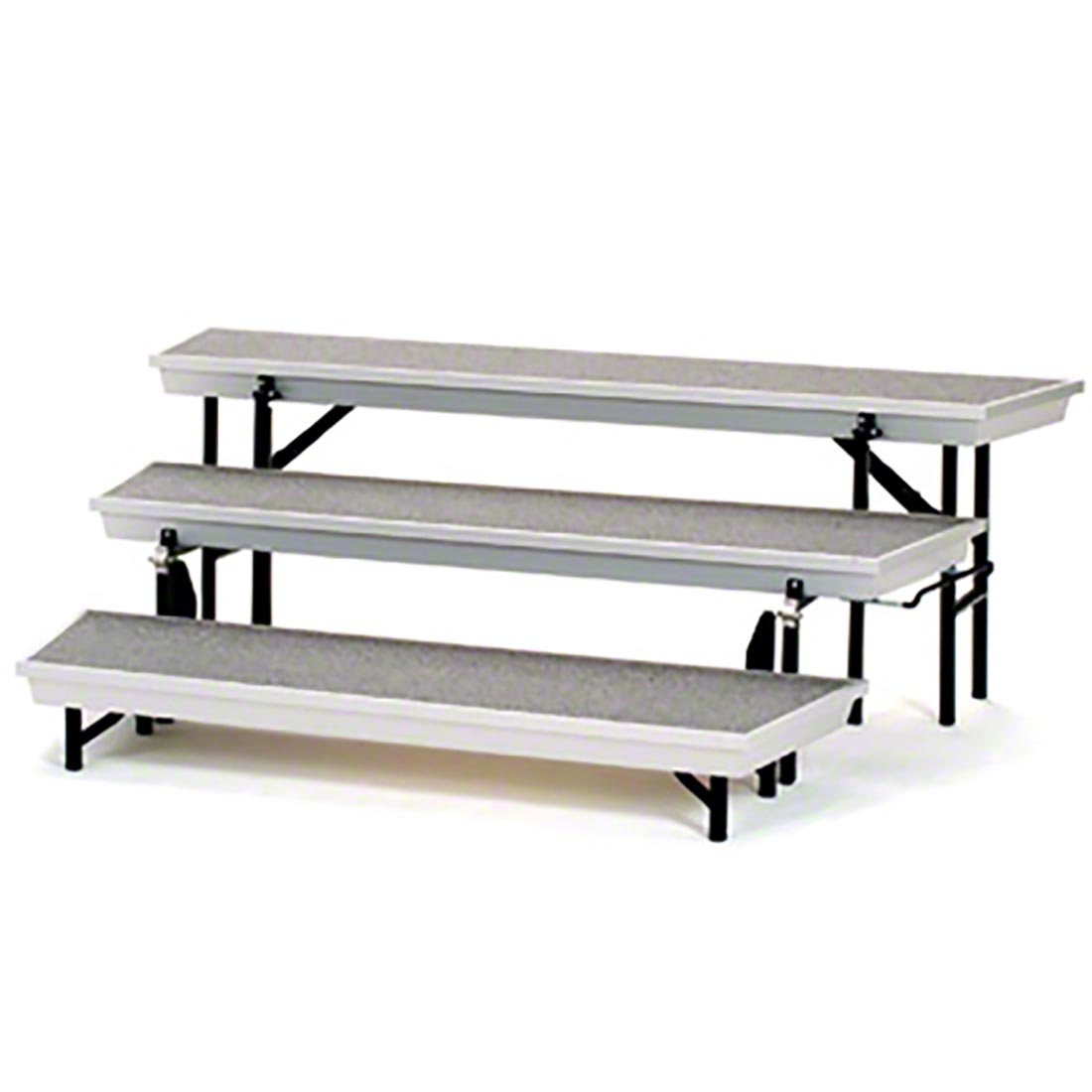

Rise to the occasion with the NPS 3-Level Tapered Trans-Port Riser!
This gray-carpeted, multi-tiered standing riser is the reliable, convenient and affordable choice for your performances. Each of the three 18" wide levels (8", 16", and 24" high) are made from thick plywood and have a secure Standard Uniform Load Rating of 200+ lbs per square foot, accommodating 15-18 adults. The decks are encased in supremely durable, 3" deep, anodized aluminum frames which fortify them while protecting the carpeting of the surfaces beneath when collapsed.
The NPS 3-Level Trans-Port Riser flips open and shut with minimal effort for quick assembly and compact storage. It comes equipped with a strong handle and two black rolling casters attached to black powder-coated 14-gauge tubular steel legs for simple mobility when folded and allow for easy positioning when setting up. The two remaining legs nest into high-impact plastic glides to protect floor surfaces. Firmly-welded ganging devices (including the dual-purpose handle) let users combine equal-height stages to create extended configurations. Ships fully assembled.
Please Note: Guardrails are recommended while using any stages or risers to ensure safety.
Rise to the occasion with the NPS 3-Level Tapered Trans-Port Riser!
This gray-carpeted, multi-tiered standing riser is the reliable, convenient and affordable choice for your performances. Each of the three 18" wide levels (8", 16", and 24" high) are made from thick plywood and have a secure Standard Uniform Load Rating of 200+ lbs per square foot, accommodating 15-18 adults. The decks are encased in supremely durable, 3" deep, anodized aluminum frames which fortify them while protecting the carpeting of the surfaces beneath when collapsed.
The NPS 3-Level Trans-Port Riser flips open and shut with minimal effort for quick assembly and compact storage. It comes equipped with a strong handle and two black rolling casters attached to black powder-coated 14-gauge tubular steel legs for simple mobility when folded and allow for easy positioning when setting up. The two remaining legs nest into high-impact plastic glides to protect floor surfaces. Firmly-welded ganging devices (including the dual-purpose handle) let users combine equal-height stages to create extended configurations. Ships fully assembled.
Please Note: Guardrails are recommended while using any stages or risers to ensure safety.
- Includes in three 18" wide levels; 8", 16" and 24" high that are permanently joined with hinge mechanisms to enable the unit to open and close in a unified fashion
- Each unit is equipped with wheels for easy transportation when folded and to allow for easy positioning after set up
- Riser levels supported by a 3" deep, double walled, extruded anodized aluminum frame that overlaps the top of each level to protect the carpet edge
- Riser platforms constructed of 3/4" plywood, surfaced with polyolefin grey carpet
- Optional guardrails constructed of black epoxy powder-coated tubular steel and equipped with clamp-on attachments for easy installation
- Straight or tapered units available for various configurations
Please Note: Straight and tapered units may not be combined. Straight risers may only be ganged with straight risers; tapered risers may only be ganged with tapered risers.
1 - Tapered Trans-Port 3-Level Riser, 18" wide; 8", 16" and 24" high (permanently joined)
- Dimensions:
- 8”H measurement: narrowest point is 52 5/8”L; widest point is 59 ¼”L, height is 8 ½H
- 16”H measurement: narrowest point is 59 ¼”L; widest point is 66”L, height is 16 ½H
- Angle of riser sides is 22.5 degrees (2 risers would create a 45-degree angle, 4 would create a 90-degree angle)
- 3-Level Tapered Riser folded height: 23”
- Standing Capacity: 11-14 adults (with optional 4th level #TPRA: 16-19 adults)
- Weight: 132 lbs

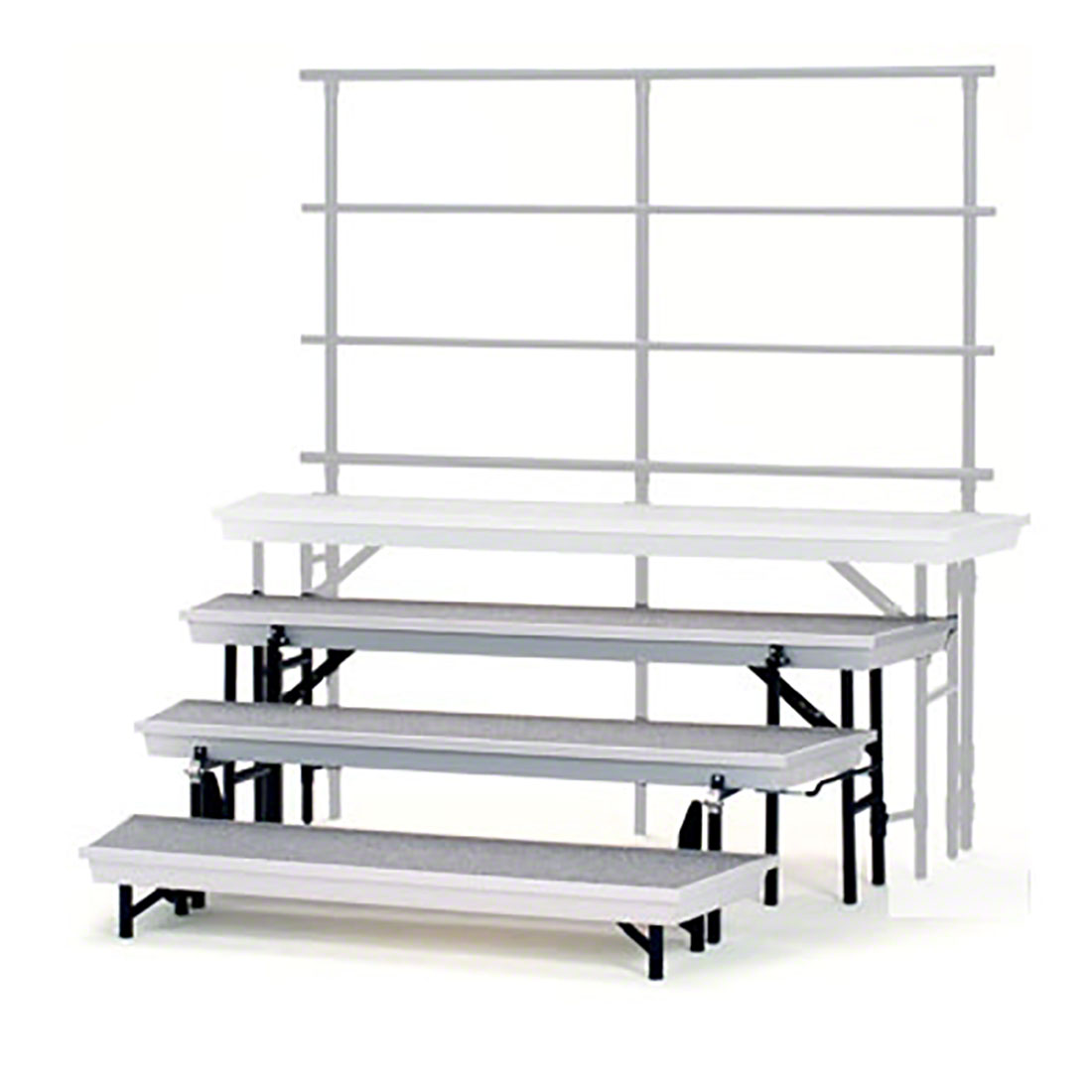

- Guardrail (sold separately) on 3-level riser is 42”H, total height installed is 66"
- Overall Dimensions with Guardrail: 53½"D x 72½"W x 66"H
