Rugged & Durable Truss for Live Events, Exhibitions & Retail
ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.

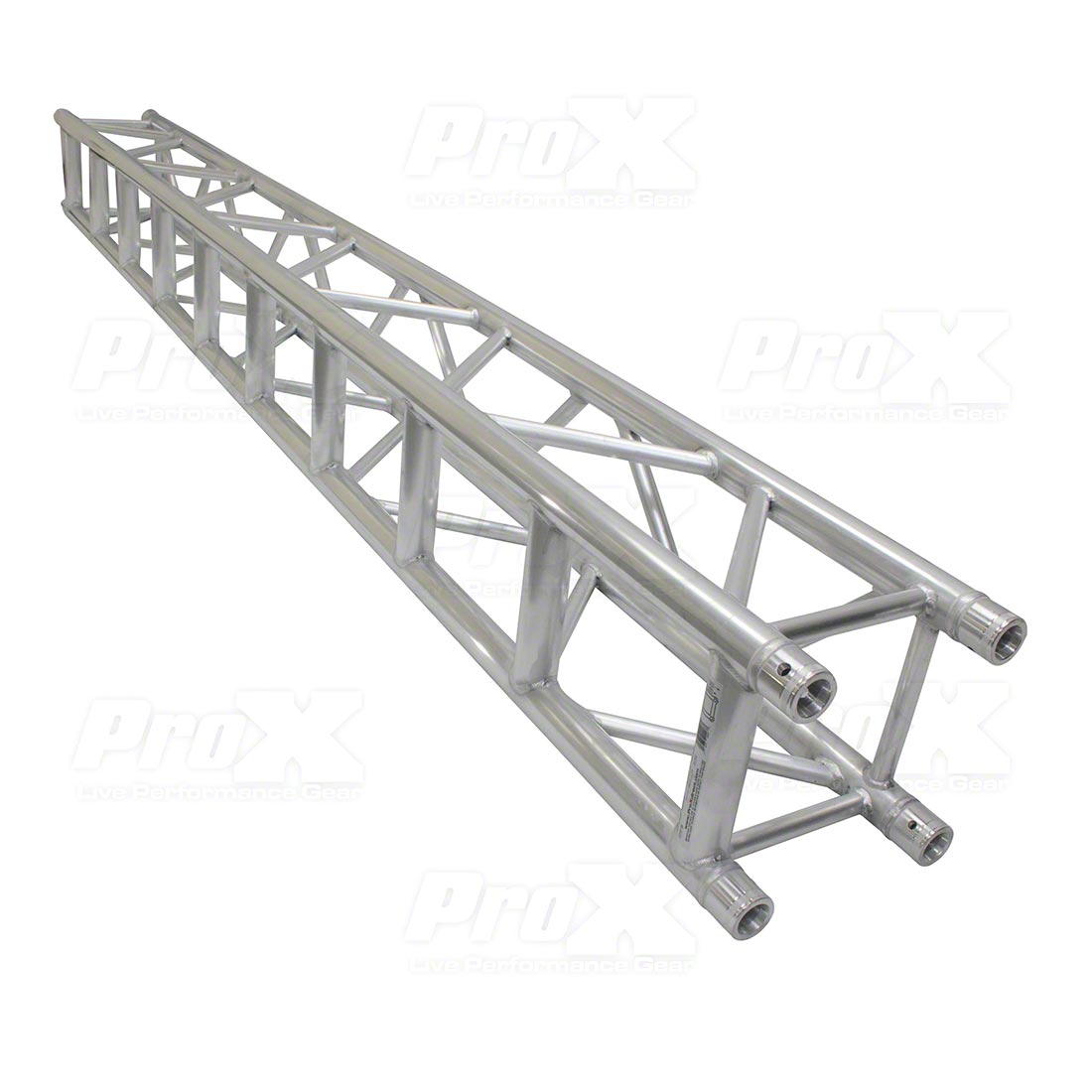

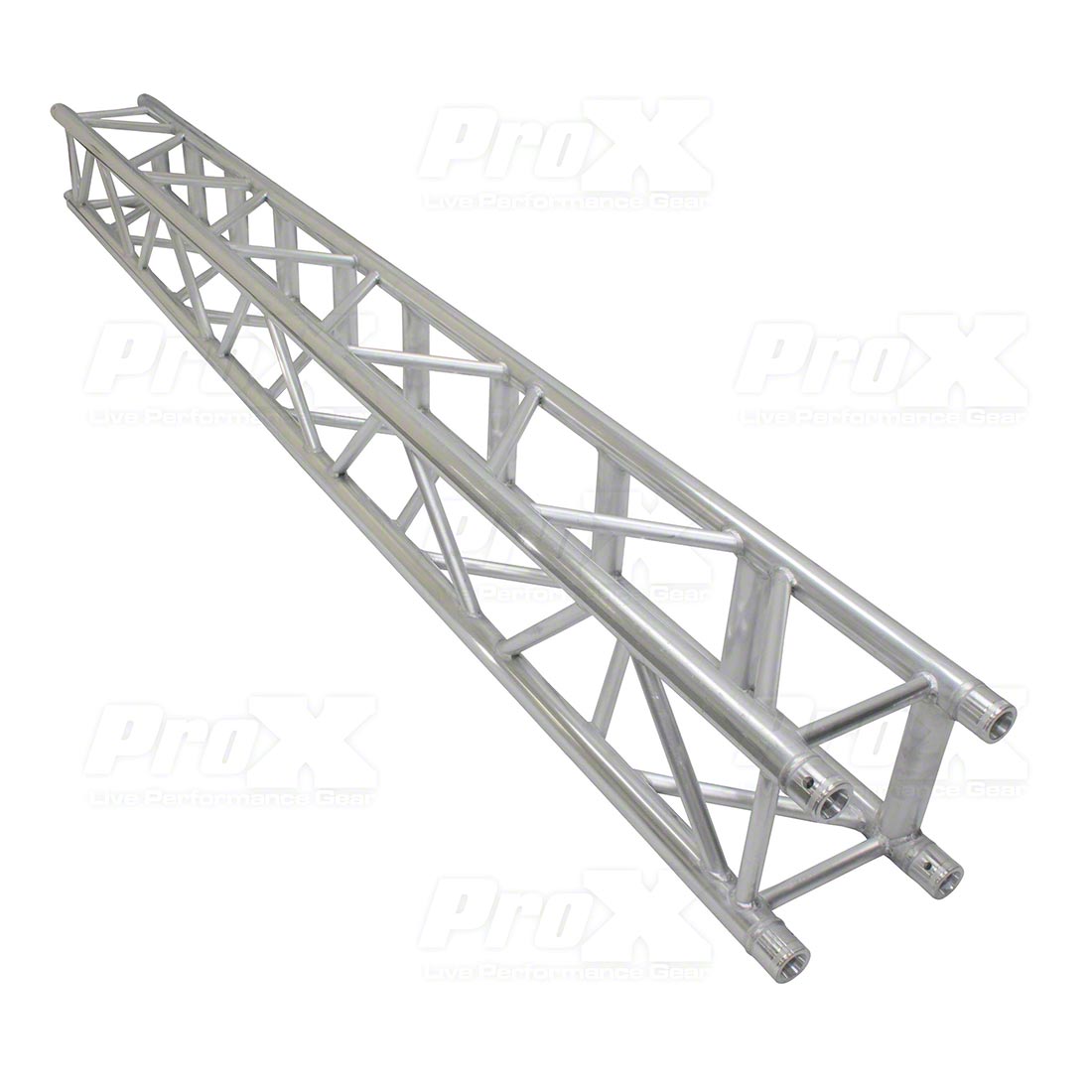

The ProX F34 Square Box Professional Truss Ladder 3m Straight Segment is a 3000mm (118.11-inch) long, 290mm (11.4-inch) square straight truss piece that is compatible in design with standard F34 Trussing but with a ladder brace on one side for safe climbing and with thicker-tube 3mm walls for enhancing vertical load capacity in combination with standard main rig trussing. It can be connected to other truss pieces to build a custom trussing configuration. Constructed of pro-grade aluminium, ProX F34 Professional Square Box Truss consists of a 50x3mm main tubes and 20x3mm braces.

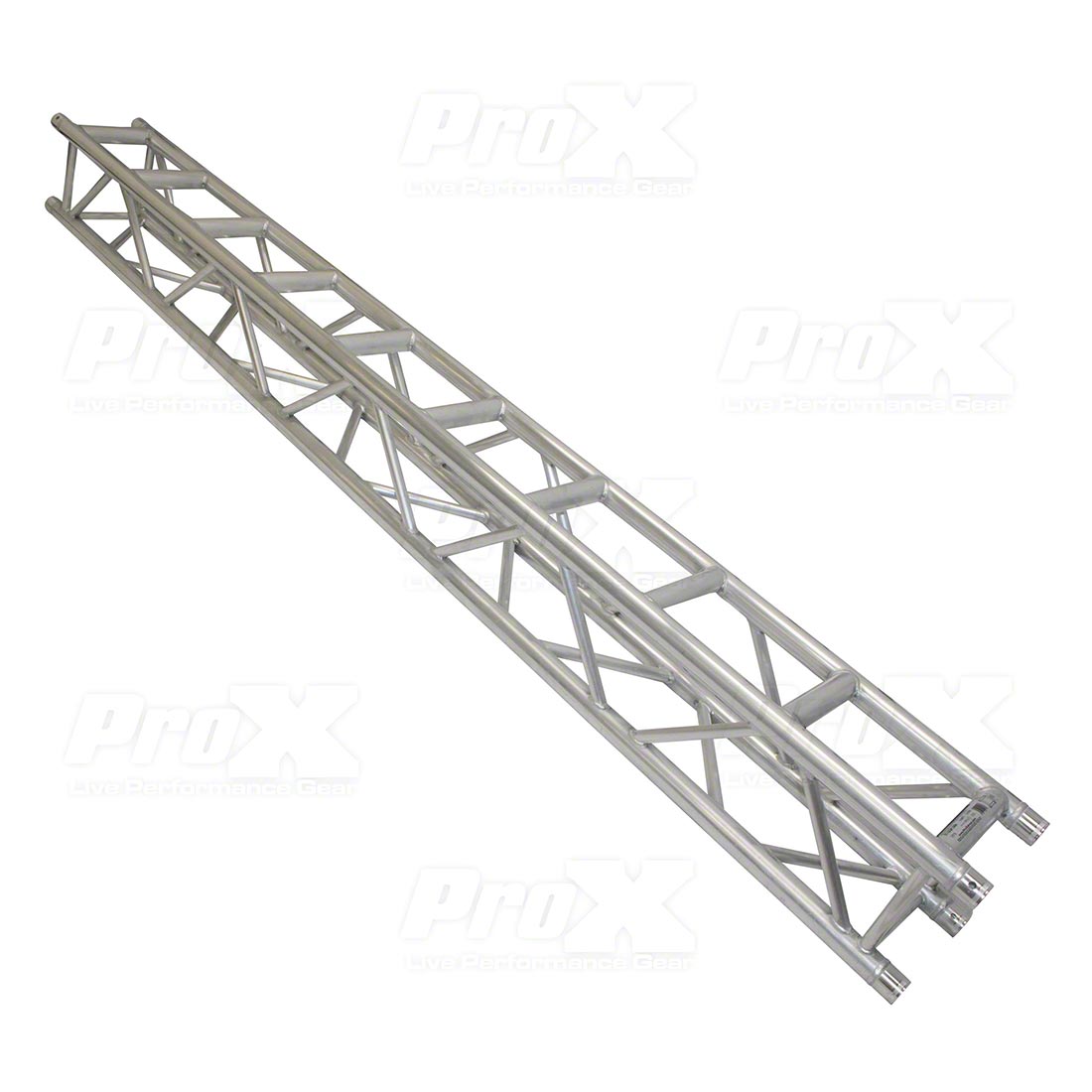

The easy-to-climb, Professional Ladder Truss is square truss that has one side as a ladder with 2" tubes, 250mm (9.84-inch) spacing and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style.

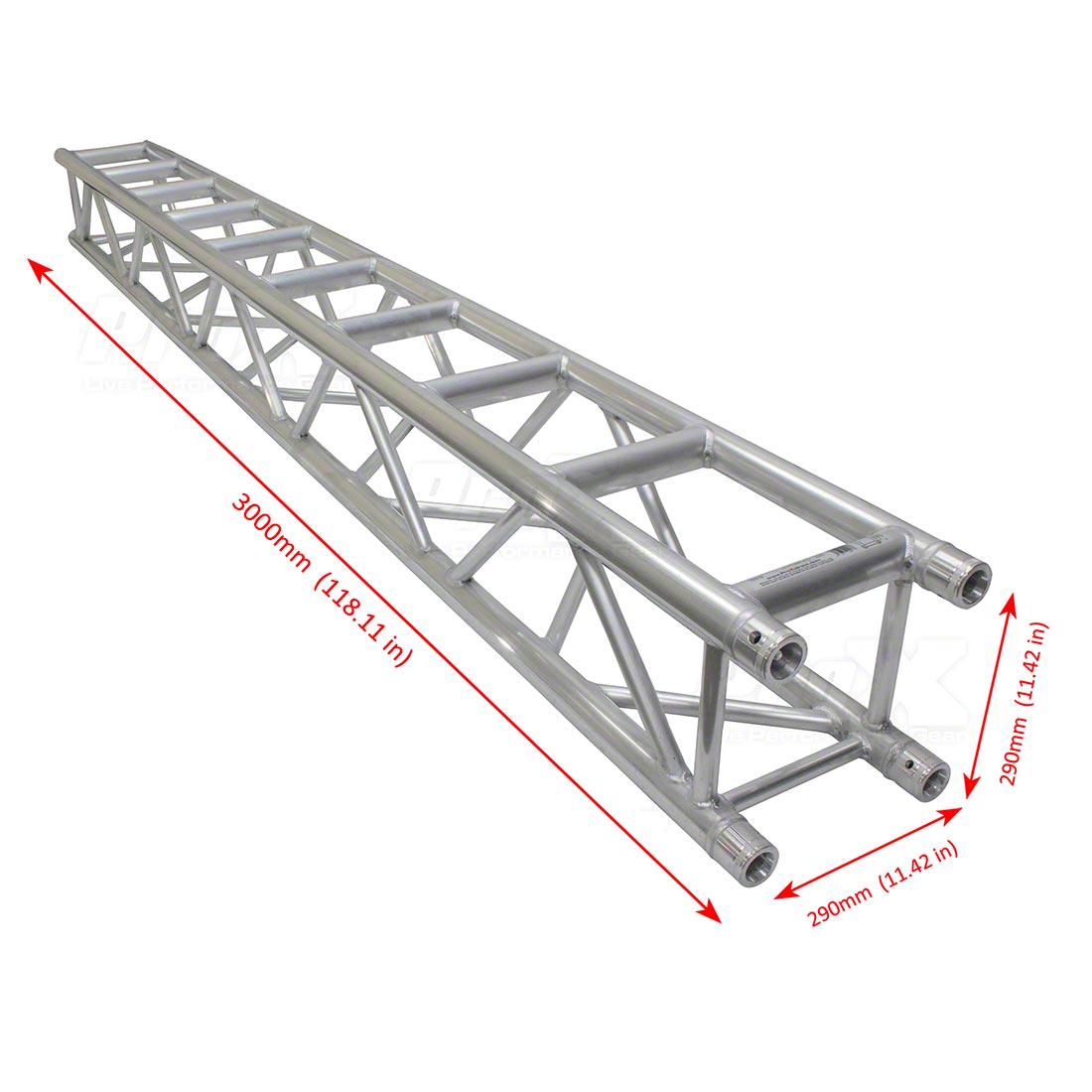

Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
It is important to note that ladder truss is designed to be installed in a vertical orientation. It is typically used at the lift/support points of a truss roofing system or indoor truss structure to make climbing of the structure easier and safer. It should not normally be used in a horizontal position. However, because it has 3mm wall tubes it will still be as strong as the 2mm tube standard XT-SQ trussing and the loading chart for the XT-SQ Truss should be used. The ladder side has no diagonal bracing so if ever used horizontally the ladder side should be oriented down.
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
Rugged & Durable Truss for Live Events, Exhibitions & Retail
ProX F34 Trussing is designed for high-frequency usage or installations that demand higher loading and is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs and other permanent installations. It is ideal for rental, touring and exhibition companies.
The ProX F34 Square Box Professional Truss Ladder 3m Straight Segment is a 3000mm (118.11-inch) long, 290mm (11.4-inch) square straight truss piece that is compatible in design with standard F34 Trussing but with a ladder brace on one side for safe climbing and with thicker-tube 3mm walls for enhancing vertical load capacity in combination with standard main rig trussing. It can be connected to other truss pieces to build a custom trussing configuration. Constructed of pro-grade aluminium, ProX F34 Professional Square Box Truss consists of a 50x3mm main tubes and 20x3mm braces.
The easy-to-climb, Professional Ladder Truss is square truss that has one side as a ladder with 2" tubes, 250mm (9.84-inch) spacing and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style.
Measurements:
(cross-section)
ProX trussing is TÜV-certified, which recognizes reliability, safety & high quality. ProX trussing utilizes industry standard dimensions to be compatible with and connect to many other manufacturers' F34 trussing products with conical connectors, including Global Truss, ProFlex Truss, Euro Truss and Chauvet Truss.
ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Important
It is important to note that ladder truss is designed to be installed in a vertical orientation. It is typically used at the lift/support points of a truss roofing system or indoor truss structure to make climbing of the structure easier and safer. It should not normally be used in a horizontal position. However, because it has 3mm wall tubes it will still be as strong as the 2mm tube standard XT-SQ trussing and the loading chart for the XT-SQ Truss should be used. The ladder side has no diagonal bracing so if ever used horizontally the ladder side should be oriented down.
Always know your load weight for your equipment: XT-SQ Truss Loading Chart
- Easy to climb ladder on 1 side
- PL Series Main tube wall thickness of 3mm
- Perfect for live outdoor or indoor productions, exhibitions, retail displays & nightclubs
- Ideal truss system for rental, touring and exhibition companies
- Constructed from professional-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
- Includes connecting hardware
- Manufactured to exacting specifications in ProX's own factory
- TÜV-certified aluminum welding
- 1 - ProX F34 Professional Square Box Ladder Truss Straight Segment, 3m
- 4 - Conical Connector
- 8 - Pin
- 8 - Safety Clip
- Dimensions:
- Length: 3000mm (118.11 inches)
- Width: 290mm (11.41 inches)
- Depth: 290mm (11.41 inches)
- Main Tubes: 50mm (2") diameter, 3mm thickness
- Braces: 20mm (3/4") diameter, 3mm thickness
- Ladder Steps 50mm (2")
- Ladder Step Spacing: 250mm (9.84 inches)
- Weight: 60 lbs
- Material: Aluminium EN-AWT6 6082
- Safety Certifications: TÜV certified
- 1-Year Manufacturer Limited Warranty (excludes use as rental equipment)
- Load Bearing Capacity: XT-SQ Truss Loading Chart
